Description
General part information

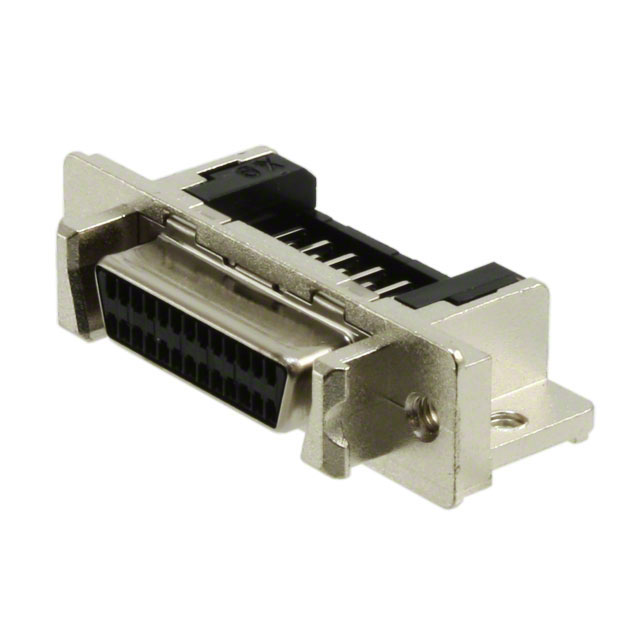

60010265132
26 Position D-Type Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 60010265132 |
|---|---|
| Backset Spacing | 0.185 in |
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.1 |
| Connector Style | D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Type | Signal |
| Current Rating | 1 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Flange Feature | Housing, Latchblocks, Shell (M2.5) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Termination | Solder |
| Voltage Rating | 240 V |
