Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-R033-0.5 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.039 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | Nonstandard |
| Package Name | 2817 |
| Power (Watts) | 7 W |
| Resistance | 33 mOhms |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.165 in |
| Supplier Device Package | 2817 |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 0.5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 1.26 | 30d+ |
CAD
3D models and CAD resources for this part
Description
General part information

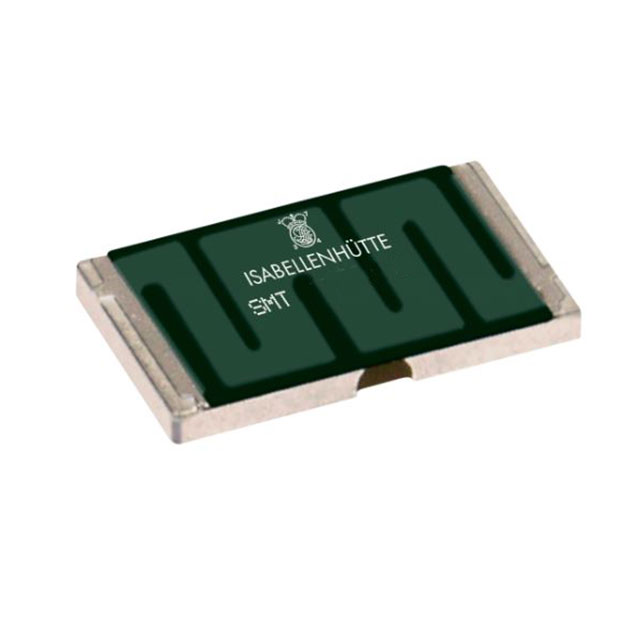

SMT-R033-0.5
33 mOhms ±0.5% 7W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
