8382-2PG-315
ActiveConxall/Switchcraft

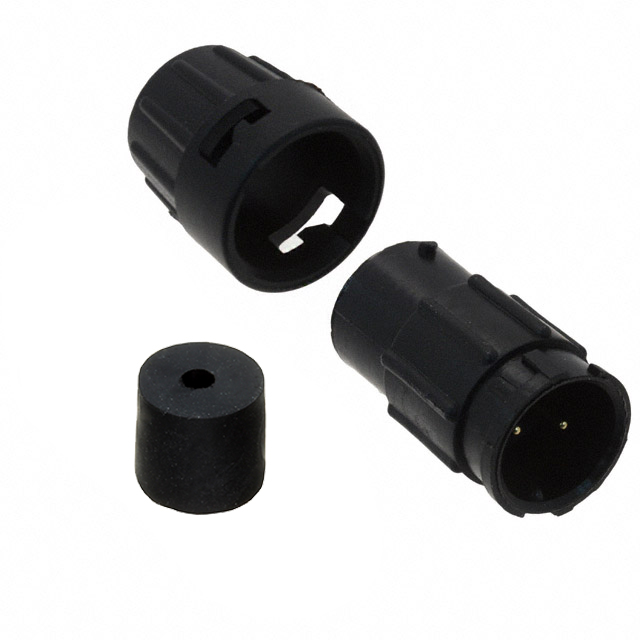

CONN RCPT MALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8382-2PG-315
ActiveConxall/Switchcraft
CONN RCPT MALE 2P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8382-2PG-315 | 8382-2PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.21 in |
| Cable Opening | - | 0.19 in |
| Cable Opening | - | 4.83 mm |
| Cable Opening | - | 5.33 mm |
| Cable Opening [custom] | 0.17 in, 0.15 in | 0.15 - 0.17 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm | 3.81 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
8382-2PG Series
CONN RCPT MALE 2P GOLD SLDR CUP
| Part | Mounting Type | Applications | Fastening Type | Voltage Rating | Current Rating (Amps) | Orientation | Contact Material | Features | Ingress Protection | Primary Material | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Shielding | Contact Finish - Mating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Backshell Material, Plating | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 8382-2PG-519 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | Bayonet Lock | 600 V | Varies by Wire Gauge | Keyed | Brass | Backshell | Weathertight | Plastic | 0.21 in | 0.19 in | 4.83 mm | 5.33 mm | Unshielded | Gold | Black | -40 °C | 115 °C | Male Pins, Receptacle | 2 | Nylon, Polyamide (PA) | ||
Conxall/Switchcraft 8382-2PG-315 | Free Hanging (In-Line) | Automotive, Communication Systems, Instrumentation | Bayonet Lock | 600 V | Varies by Wire Gauge | Keyed | Brass | Backshell | Weathertight | Plastic | Unshielded | Gold | Black | -40 °C | 115 °C | Male Pins, Receptacle | 2 | Nylon, Polyamide (PA) | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.07 | |
| 10 | $ 7.30 | |||
| 25 | $ 6.89 | |||
| 50 | $ 6.73 | |||
Description
General part information
8382-2PG Series
2 Position Circular Connector Receptacle, Male Pins Solder Cup
