1200680197

Active

Molex

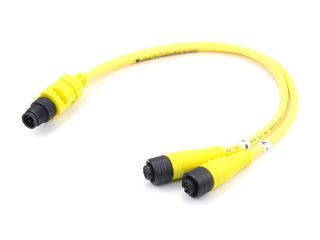

MICRO-CHANGE (M12) IN-LINE SPLITTER, 4 POLE, 1 X 4-POLE MALE TO 2 X 3-POLE FEMALE, 22 AWG, 1.0M LENGTH

Find alt

Alpha

1200680197

Active

Molex

MICRO-CHANGE (M12) IN-LINE SPLITTER, 4 POLE, 1 X 4-POLE MALE TO 2 X 3-POLE FEMALE, 22 AWG, 1.0M LENGTH

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

120068 Series

Micro-Change (M12) In-Line Splitter with Knurled Hexnuts, 4 Pole, 1 x 4-Pole Male (Straight) to 2 x 3-Pole Female (90°), WSOR Cable, 5.0m (16.40') Length

Technical Specifications

Parameters and characteristics for this part

Specification	1200680197

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4 positions
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Count	2 pcs
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	3 positions
2nd Connector Shell Size - Insert (Code)	M12
2nd Connector Type	Plug
Assembly Configuration	Y-Adapter on One End
Cable Material	Thermoplastic Elastomer (TPE)
Cable Type	Round
Color	Yellow
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

120068 Series

Micro-Change (M12) In-Line Splitter with Knurled Hexnuts, 4 Pole, 1 x 4-Pole Male (Straight) to 2 x 3-Pole Female (90°), WSOR Cable, 5.0m (16.40') Length

...

Part	1st Connector Gender	2nd Connector Number of Positions	Cable Type	Assembly Configuration	2nd Connector Gender	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert (Code)	Ingress Protection Description	Ingress Protection IP Rating	1st Connector Shell Size - Insert	2nd Connector Mounting Type	2nd Connector Type	2nd Connector Count	Length	Usage	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Number of Positions	Color	Cable Material	1st Connector Mounting Type	Shielding	2nd Connector Number of Positions Loaded	2nd Connector Orientation	1st Connector Orientation
Molex 1200680202	Male Pins	4	Round	Y-Adapter on One End	Female Sockets	3 positions	M12	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Plug Right Angle	2 pcs	6.56 ft	Industrial Environments	Receptacle	All	4 positions	Yellow	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Unshielded
Molex 1200680221
Molex 1200680214
Molex 1200680020
Molex 1200680094	Male Pins	4	Round	Y-Adapter on One End	Female Sockets		M12	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Plug	2 pcs	0.66 ft	Industrial Environments	Receptacle	All	4 positions	Yellow	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Unshielded	All

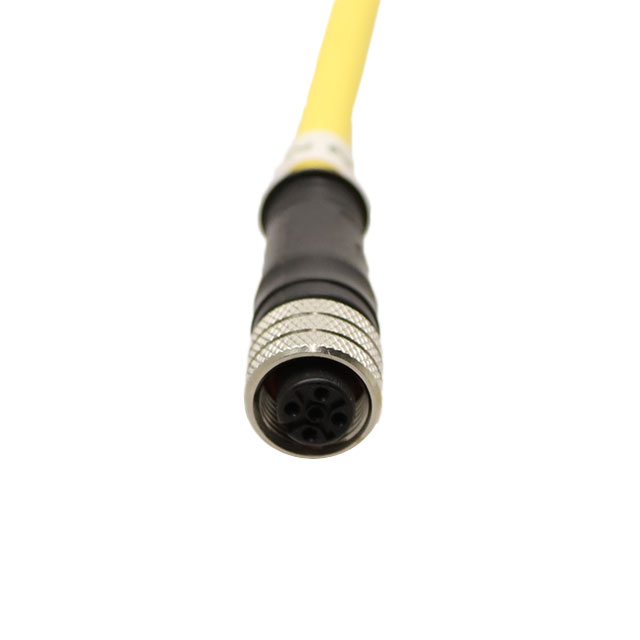

Molex 1200680351	Male Pins				Female Sockets		M12			M12		Plug				Receptacle	All	4 positions		Thermoplastic Elastomer (TPE)				Keyed	Keyed
Molex 1200680206
Molex 1200680193	Male Pins	4	Round	Y-Adapter on One End	Female Sockets	3 positions	M12	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Plug	2 pcs	9.84 ft	Industrial Environments	Receptacle	All	4 positions	Yellow	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Unshielded
Molex 1200680108
Molex 1200680194	Male Pins	4	Round	Y-Adapter on One End	Female Sockets	3 positions	M12	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Plug	2 pcs	13.12 ft	Industrial Environments	Receptacle	All	4 positions	Yellow	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Drawing

1200680197 | Datasheet
