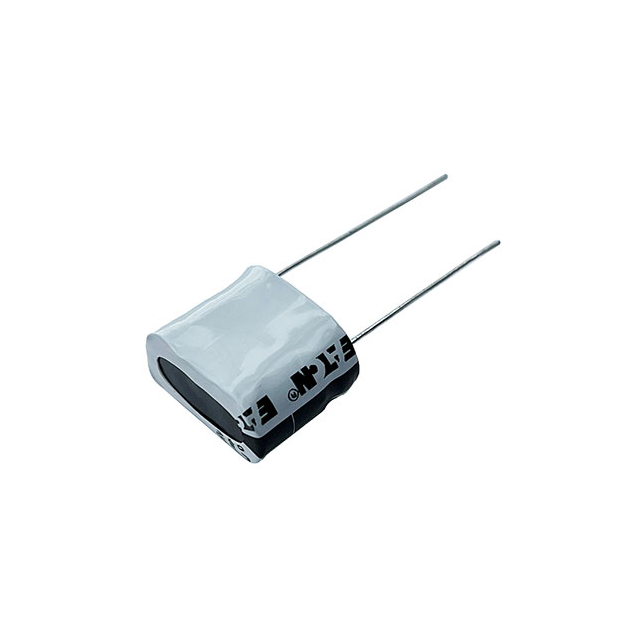

PHVL-3R9V255-R
ActiveEaton - Electronics Division
SUPERCAP 3.9V 2.5F 0.08 OHM VT
PHVL-3R9V255-R
ActiveEaton - Electronics Division
SUPERCAP 3.9V 2.5F 0.08 OHM VT
Description
General part information
PHVL-3R9V255-R
2.5 F (EDLC) Supercapacitor 3.9 V Radial 80mOhm 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PHVL-3R9V255-R |
|---|---|
| Capacitance | 2.5 F |
| ESR (Equivalent Series Resistance) | 80 mOhm |
| Height - Seated (Max) | 0.906 in |
| Lead Spacing | 0.209 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.839 in |
| Size / Dimension Width | 0.433 in |
| Termination | PC Pins |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 3.9 V |
