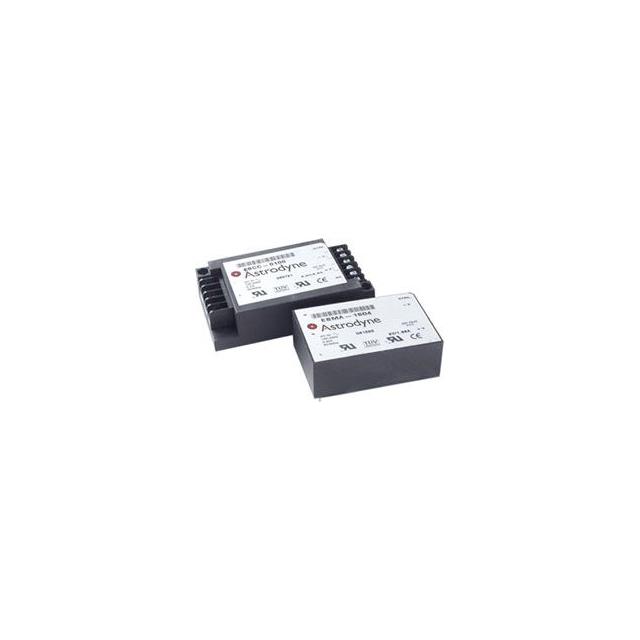

ETCA-0311
ActiveAstrodyne TDI
30W TRIPLE OUTPUT ENCAPSULATED P
ETCA-0311
ActiveAstrodyne TDI
30W TRIPLE OUTPUT ENCAPSULATED P
Description
General part information
ETCA-0311
Enclosed AC DC Converters 3 Output 5V 3A, 500mA, 500mA 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ETCA-0311 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus |
| Current - Output (Max) Options | 500mA, 3A |
| Efficiency | 74 % |
| Features | Universal Input, Adjustable Output |
| Line Regulation | 0.2 % |
| Load Regulation (Percent) | 0.6 % |
| Mounting Type | Through Hole |
| Number of Outputs | 3 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Package Leads | 7 Leads |
| Package Name | 8-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension Height | 0.98 in |
| Size / Dimension Length | 4.06 in |
| Size / Dimension Width | 2.5 in |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 5 V |
