Description
General part information
45J100E

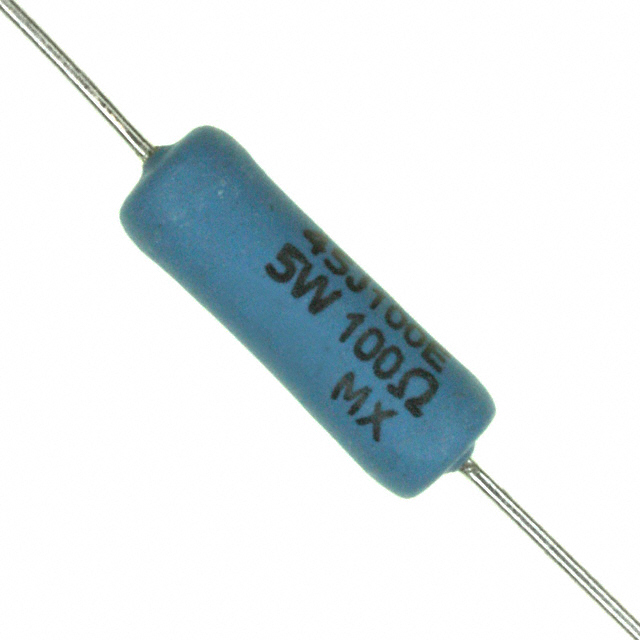

100 Ohms ±5% 5W Through Hole Resistor Axial Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | 45J100E |
|---|---|
| Composition | Wirewound |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 275 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 5 W |
| Resistance | 100 Ohms |
| Size / Dimension Diameter | 0.343 in |
| Size / Dimension Length | 0.937 in |
| Temperature Coefficient | 20 ppm/¯C |
| Tolerance | 5 % |
