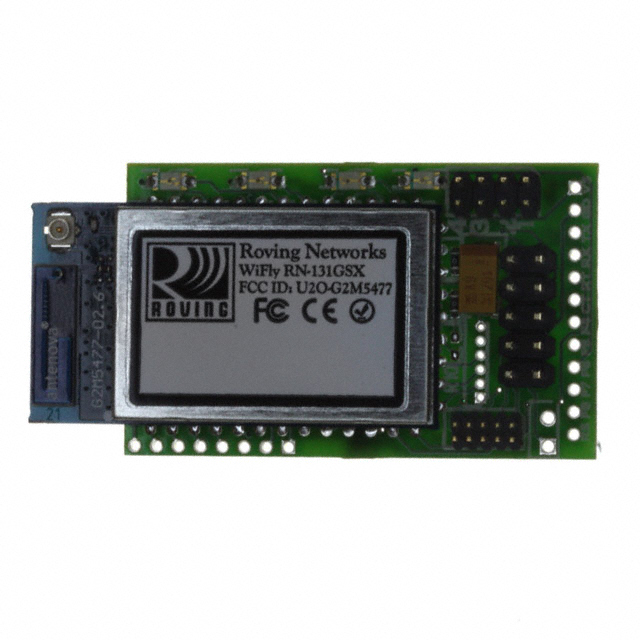

RN134-I/RM
ObsoleteMicrochip Technology
RF TXRX MOD WIFI CHIP + U.FL SMD
RN134-I/RM
ObsoleteMicrochip Technology
RF TXRX MOD WIFI CHIP + U.FL SMD
Description
General part information
RN134-I/RM
WiFi 802.11b/g Transceiver Module 2.4GHz Integrated, Chip + U.FL Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RN134-I/RM |
|---|---|
| Antenna Type | Integrated, Chip + U.FL |
| Current - Receiving | 40 mA |
| Current - Transmitting | 140 mA |
| Data Rate | 54 Mbps |
| Frequency | 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Module |
| Power - Output | 18 dBm |
| Protocol | 802.11g, 802.11b |
| RF Family/Standard | WiFi |
| Sensitivity | -85 dBm |
| Serial Interfaces | SPI, UART |
| Voltage - Supply (Maximum) | 12 V |
| Voltage - Supply (Minimum) | 3 V |
