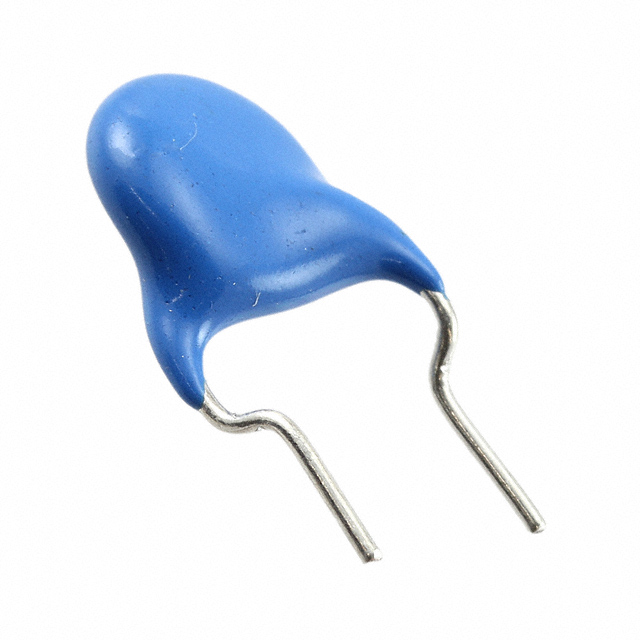

CC45SL3FD820JYNNA
ActiveTDK Corporation
DISC CAPACITOR, 82PF, 3KV, RADIAL ROHS COMPLIANT: YES
CC45SL3FD820JYNNA
ActiveTDK Corporation
DISC CAPACITOR, 82PF, 3KV, RADIAL ROHS COMPLIANT: YES
Description
General part information
CC45SL3FD820JYNNA
82 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | CC45SL3FD820JYNNA |
|---|---|
| Applications | General Purpose |
| Capacitance | 82 pF |
| Features | Low Dissipation Factor, High Voltage |
| Height - Seated (Max) | 0.472 in |
| Lead Spacing | 0.295 in |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.315 in |
| Temperature Coefficient | SL |
| Tolerance | 5 % |
| Voltage - Rated | 3000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
