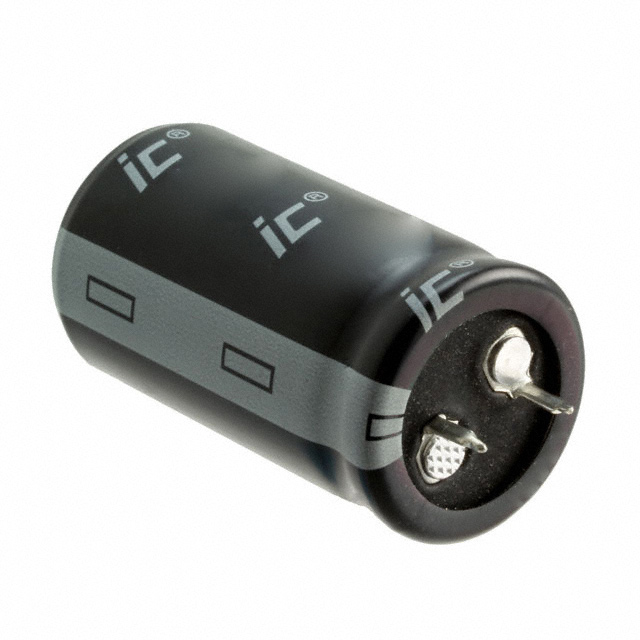

Specification	277LBA250M2BD

Applications	General Purpose
Capacitance	270 µF
ESR (Equivalent Series Resistance)	921.04 mOhm
Height - Seated (Max)	1.26 in
Lead Spacing	0.394 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	2.205 A, 1.5 A
Size / Dimension Diameter	0.866 in
Tolerance	20 %
Voltage - Rated	250 V
