Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-EEICA1 | X-NUCLEO-EEICA1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | EEPROM | EEPROM |
| Interconnect System | Arduino R3 Shield | Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Primary Attributes | 1 Mbit, 256 Kbit | 1 - 256 Mbit |
| Secondary Attributes | I2C Interface(s) | I2C Interface(s) |
| Type | Memory | Memory |
| Utilized IC / Part | M24M01E-F, M24256E-F | M24M01E-F, M24256E-F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.45 | |
X-NUCLEO-EEICA1 Series
Standard I2C EEPROM memory expansion board based on M24256E-F and M24M01E-F series for STM32 Nucleo
| Part | Interconnect System | Secondary Attributes | Contents | Utilized IC / Part | Type | Platform | Function | Primary Attributes |
|---|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-EEICA1 | ||||||||
STMicroelectronics X-NUCLEO-EEICA1 | Arduino R3 Shield | I2C Interface(s) | Board(s) | M24256E-F, M24M01E-F | Memory | Nucleo | EEPROM | 1 Mbit, 256 Kbit |
Description
General part information
X-NUCLEO-EEICA1 Series

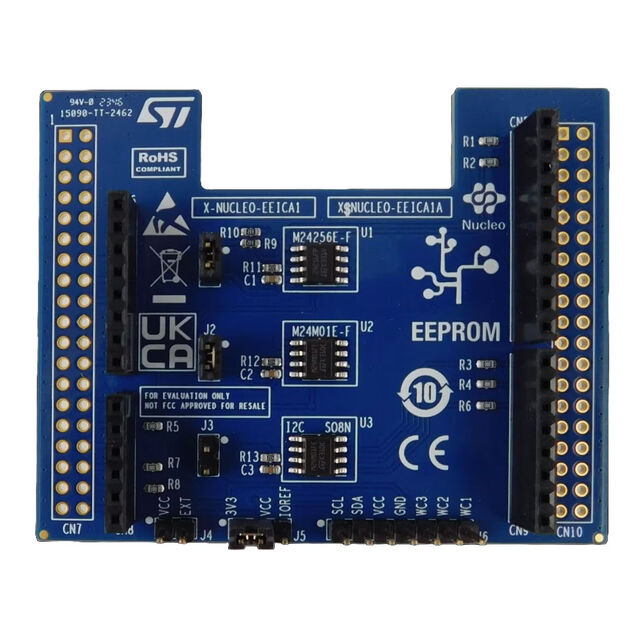

The X-NUCLEO-EEICA1 expansion board is designed for M24256E-F and M24M01E-F series I2C EEPROM for data reading and writing.
The expansion board acts as an external storage device that can be used to store data such as manufacturing traceability, calibration, user settings, error flags, data logs, and monitoring data to make applications more flexible and accurate.
