926305-1
ActiveTE Connectivity AMP Connectors

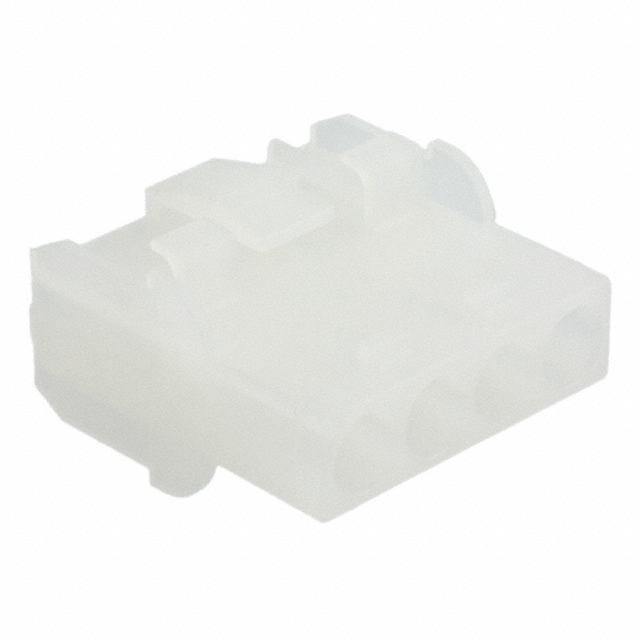

CONN RCPT HSG 4POS UNIV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

926305-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS UNIV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | 926305-1 | 926305 Series |
---|---|---|
Color | Natural | Natural |
Connector Type | Receptacle | Receptacle |
Contact Termination | Crimp | Crimp |
Contact Type | Male or Female | Female Socket, Male or Female |
Fastening Type | - | Latch Holder |
Insulation Material | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 |
Mounting Type | - | Panel Mount, Snap-In |
Note | Contacts Not Included | Contacts Not Included |
Number of Positions | 4 | 4 |
Number of Rows | 1 | 1 |
Operating Temperature [Max] | 125 °C | 125 °C |
Operating Temperature [Min] | -55 °C | -55 °C |
Pitch | - | 0.25 in |
Pitch | - | 6.35 mm |
926305 Series
CONN RCPT HSG 4POS 6.35MM
Part | Contact Termination | Connector Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Type | Fastening Type | Number of Positions | Insulation Material | Note | Mounting Type | Pitch [x] | Pitch [x] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 926305-6 | Crimp | Receptacle | Natural | -55 °C | 125 °C | 1 | Female Socket | Latch Holder | 4 | Polyamide (PA6), Nylon 6 | Contacts Not Included | Panel Mount, Snap-In | 0.25 in | 6.35 mm |
TE Connectivity AMP Connectors 926305-1 | Crimp | Receptacle | Natural | -55 °C | 125 °C | 1 | Male or Female | 4 | Polyamide (PA6), Nylon 6 | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 6000 | $ 3.79 |
Description
General part information
926305 Series
4 Rectangular Connectors - Housings Receptacle Natural
Documents
Technical documentation and resources
