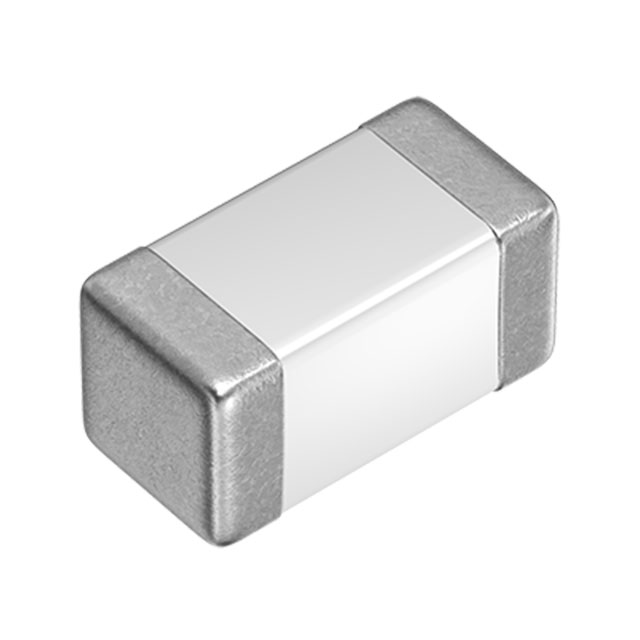

MLK0603L2N2ST000
LTBTDK Corporation
INDUCTOR RF CHIP UNSHIELDED MULTI-LAYER 0.0022UH 0.3NH 100MHZ 6Q-FACTOR CERAMIC 0.3A 0.3OHM DCR 0201 T/R
MLK0603L2N2ST000
LTBTDK Corporation
INDUCTOR RF CHIP UNSHIELDED MULTI-LAYER 0.0022UH 0.3NH 100MHZ 6Q-FACTOR CERAMIC 0.3A 0.3OHM DCR 0201 T/R
Description
General part information
MLK0603L2N2ST000
2.2 nH Unshielded Multilayer Inductor 300 mA 300mOhm Max 0201 (0603 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MLK0603L2N2ST000 |
|---|---|
| Current Rating | 0.3 A |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Frequency - Self Resonant | 9 GHz |
| Height - Seated (Max) | 0.013 in |
| Inductance | 2.2 nH |
| Inductance Frequency - Test | 100 MHz |
| Material - Core | Non-Magnetic |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0201 (0603 Metric) |
| Package Name | 0201 (0603 Metric) |
| Q | 6 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Tolerance | 0.3 nH |
| Type | Multilayer |
