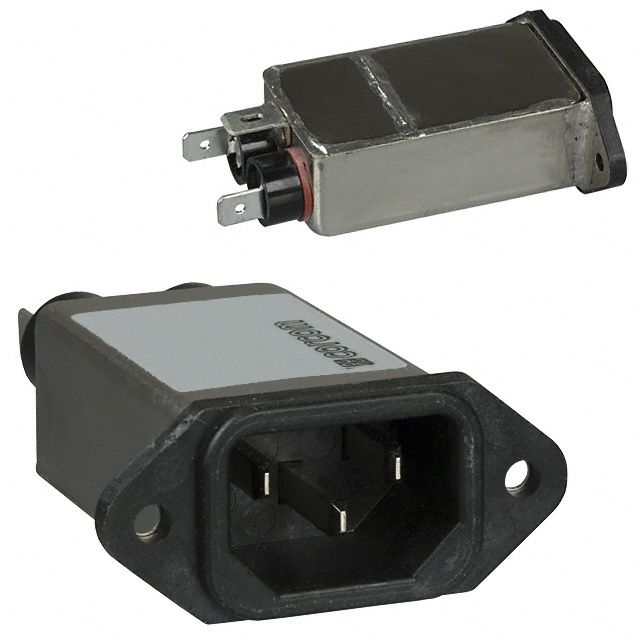

15EJT1

Active

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	15EJT1

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A
Current Rating - Filter	15 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	30.48 mm
Panel Cutout Dimensions [y]	22.86 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Current Rating - Filter	Termination	Termination	Termination	Connector Style	Approval Agency	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Filter Type	Mounting Type	Accomodates a Fuse
TE Connectivity Corcom Filters 15EJT1	Male Blades, Receptacle	22.86 mm	30.48 mm	15 A	15 A	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	CSA, UL, VDE	250 VAC	120 VAC	Filtered (EMI, RFI) - Commercial	Flange, Panel Mount
