DMN2080UCB4-7
ActiveDiodes Inc
SMALL SIGNAL FIELD-EFFECT TRANSISTOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN2080UCB4-7 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 3 A |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5 V, 1.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 7.4 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 540 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

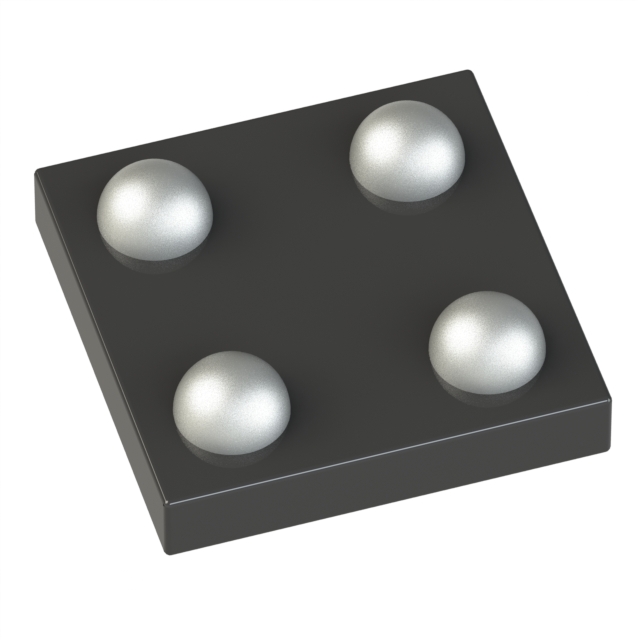

| Package / Case | WLBGA, 4-XFBGA |
| Power Dissipation (Max) [Max] | 710 mW |
| Rds On (Max) @ Id, Vgs | 56 mOhm |
| Supplier Device Package | X2-WLB0606-4 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 8 V |
| Vgs(th) (Max) @ Id | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.35 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.12 | |||
| 9000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.10 | |||
Description
General part information
DMN2080UCB4 Series
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) with thin WLCSP packaging process and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
