Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VL53L8CXV0GC/1 | VL53L8CX Series |
|---|---|---|
| - | - | |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Output Type | I2C, SPI | I2C, SPI |
| Sensor Type | ToF Distance Sensor | ToF Distance Sensor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
VL53L8CX Series
Low-power high-performance 8x8 multizone Time-of-Flight sensor (ToF)
| Part | Output Type | Sensor Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|
STMicroelectronics VL53L8CXV0GC/1 | I2C, SPI | ToF Distance Sensor | -30 ░C | 85 °C |
STMicroelectronics VL53L8CXV0GC/1 | ||||
STMicroelectronics VL53L8CXV0GC/1 | ||||
STMicroelectronics VL53L8CXV0GC/1 |
Description
General part information
VL53L8CX Series

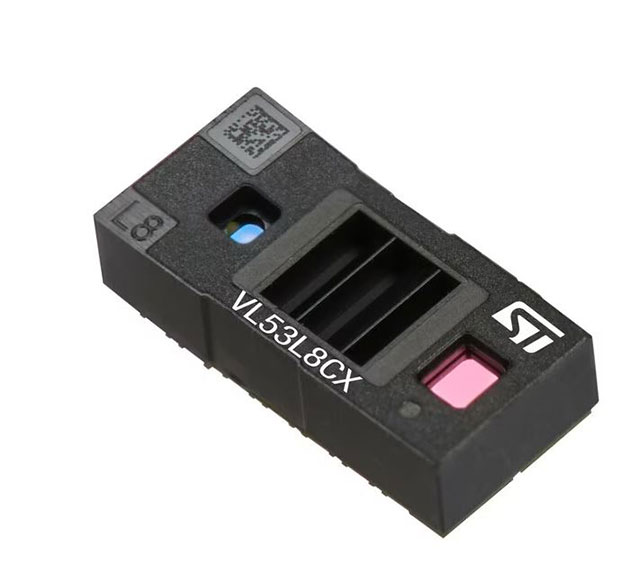

The VL53L8CX is an 8x8 multizone, ToF ranging sensor, which enhances performance under ambient light with a reduced power consumption. Based on STMicroelectronics' FlightSense technology, the sensor is designed to provide accurate ranging up to 400 cm with a 65° diagonal FoV.
The VL53L8CX integrates a powerful new generation VCSEL, and two advanced metasurface lenses. The hardware is housed in an innovative "all in one" module. This enables a wider variety of high-performance usecases, such as low-power system activation, gesture recognition, SLAM for robotics, liquid level monitoring, and many more.
Thanks to STMicroelectronics' patented algorithms, the VL53L8CX can detect and track multiple targets within the FoV, with a 64-zone depth measurement. The STMicroelectronics' histograms ensure a cover glass crosstalk immunity above 60 cm.
