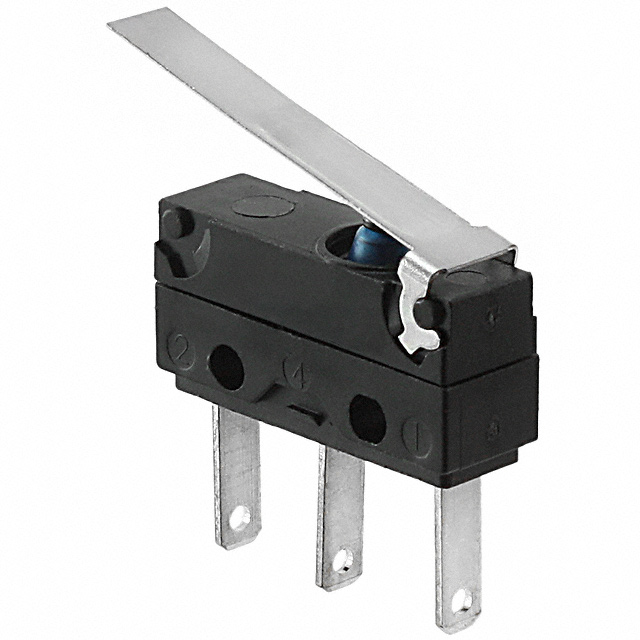

83181061

Active

Crouzet

SWITCH SNAP ACTION SPDT 6A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACTION SPDT 6A 250V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 6A 250V

Part	Circuit	Release Force	Operating Position [custom]	Operating Position [custom]	Voltage Rating - AC	Differential Travel	Differential Travel	Mounting Type	Mechanical Life	Operating Force	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Overtravel	Overtravel	Actuator Type	Ingress Protection	Current Rating (Amps)	Termination Style
Crouzet 83181061	SPDT	20 gf	0.437 "	11.1 mm	250 V	0.016 "	0.4 mm	Chassis Mount	2000000 Cycles	64 gf	24 V	125 °C	-40 °C	On-Mom	0.094 in	2.4 mm	Lever, Straight	IP67 - Dust Tight, Waterproof	6 A	Quick Connect - 0.110" (2.8mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1104	$ 7.86

General part information

Switch SPDT Chassis Mount
