NCS6S4815C
ActiveMurata Power Solutions Inc.

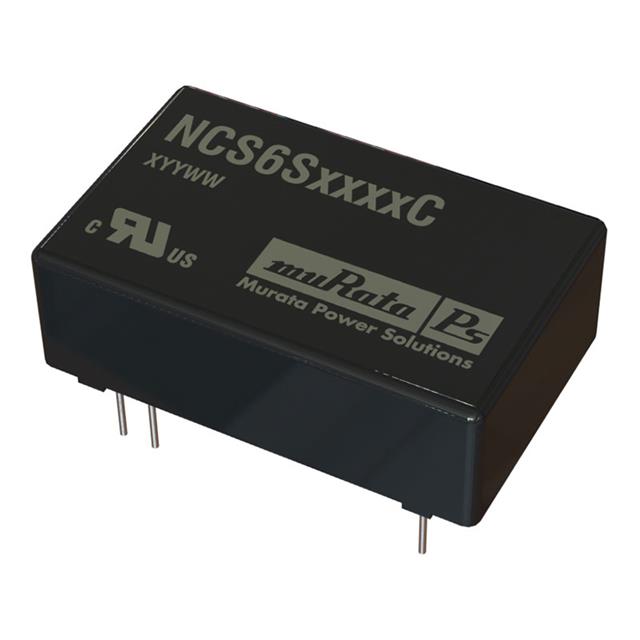

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 6 W, 1 OUTPUT, 15 V, 400 MA
Deep-Dive with AI
Search across all available documentation for this part.
NCS6S4815C
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 4:1, 6 W, 1 OUTPUT, 15 V, 400 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NCS6S4815C | NCS6S Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 400 mA | 1.2 - 500 mA |
| Efficiency | 84 % | 76 - 87 % |
| Features | - | OTP, UVLO, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7 Leads | 7 Leads |
| Package / Case | 24-DIP Module | 24-DIP Module, 24-DIP Module, 8 Leads |
| Package / Case [x] | 600 mil | 600 mil |
| Power (Watts) | 6 W | 5 - 6 W |
| Size / Dimension | - | 1.26 in |
| Size / Dimension | - | 0.79 " |
| Size / Dimension | - | 0.39 in |
| Size / Dimension [x] | 32 mm | 32 mm |
| Size / Dimension [x] | 1.26 in | 1.26 - 32 in |
| Size / Dimension [y] | 20.1 mm | 20.1 mm |
| Size / Dimension [y] | 0.79 in | 0.79 - 20 in |
| Size / Dimension [z] | 9.9 mm | 9.9 mm |
| Size / Dimension [z] | 0.39 in | 0.39 - 10 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 18 V | 9 - 18 V |
| Voltage - Isolation | 1.5 kV | 1.5 kV |
| Voltage - Output 1 | 15 V | 3.3 - 15 V |
NCS6S Series
DC DC CONVERTER 15V 6W
| Part | Number of Outputs | Applications | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Voltage - Input (Max) [Max] | Efficiency | Type | Voltage - Input (Min) [Min] | Voltage - Output 1 | Package / Case | Package / Case | Package / Case [x] | Power (Watts) | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NCS6S1215C | 1 | ITE (Commercial) | 400 mA | 32 mm | 9.9 mm | 20.1 mm | 1.26 in | 0.79 in | 0.39 in | Through Hole | 36 V | 87 % | Isolated Module | 9 V | 15 V | 7 Leads | 24-DIP Module | 600 mil | 6 W | 1.5 kV | 85 °C | -40 °C | ||||
Murata Power Solutions Inc. NCS6S4803C | 1 | ITE (Commercial) | 1.52 A | 32 mm | 20 mm | 10 mm | Through Hole | 75 V | 76 % | Isolated Module | 18 V | 3.3 V | 24-DIP Module, 8 Leads | 5 W | 1.5 kV | 85 °C | -40 °C | OTP, SCP, UVLO | 1.26 in | 0.79 " | 0.39 in | |||||
Murata Power Solutions Inc. NCS6S4815C | 1 | ITE (Commercial) | 400 mA | 32 mm | 9.9 mm | 20.1 mm | 1.26 in | 0.79 in | 0.39 in | Through Hole | 75 V | 84 % | Isolated Module | 18 V | 15 V | 7 Leads | 24-DIP Module | 600 mil | 6 W | 1.5 kV | 85 °C | -40 °C | ||||
Murata Power Solutions Inc. NCS6S1203C | 1 | ITE (Commercial) | 1.52 A | 32 mm | 20 mm | 10 mm | Through Hole | 36 V | 78 % | Isolated Module | 9 V | 3.3 V | 24-DIP Module, 8 Leads | 5 W | 1.5 kV | 85 °C | -40 °C | OTP, SCP, UVLO | 1.26 in | 0.79 " | 0.39 in | |||||
Murata Power Solutions Inc. NCS6S1212C | 1 | ITE (Commercial) | 500 mA | 32 mm | 9.9 mm | 20.1 mm | 1.26 in | 0.79 in | 0.39 in | Through Hole | 36 V | 86 % | Isolated Module | 9 V | 12 V | 7 Leads | 24-DIP Module | 600 mil | 6 W | 1.5 kV | 85 °C | -40 °C | ||||
Murata Power Solutions Inc. NCS6S4805C | 1 | ITE (Commercial) | 1.2 A | 32 mm | 9.9 mm | 20.1 mm | 1.26 in | 0.79 in | 0.39 in | Through Hole | 75 V | 80 % | Isolated Module | 18 V | 5 V | 7 Leads | 24-DIP Module | 600 mil | 6 W | 1.5 kV | 85 °C | -40 °C | ||||
Murata Power Solutions Inc. NCS6S4812C | 1 | ITE (Commercial) | 500 mA | 32 mm | 9.9 mm | 20.1 mm | 1.26 in | 0.79 in | 0.39 in | Through Hole | 75 V | 84 % | Isolated Module | 18 V | 12 V | 7 Leads | 24-DIP Module | 600 mil | 6 W | 1.5 kV | 85 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NCS6S Series
Isolated Module DC DC Converter 1 Output 15V 400mA 18V - 75V Input
Documents
Technical documentation and resources
