145846060000829+

Active

KYOCERA AVX

CONN PLUG 60POS SMD GOLD

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN PLUG 60POS SMD GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN PLUG 40POS SMD GOLD

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Connector Type
KYOCERA AVX 145846040000829+	40	4 Áin	0.1 Ám	2	0.016 in	0.4 mm	Surface Mount	Gold	0.093 in	2.35 mm	3 mm	Outer Shroud Contacts, Plug
KYOCERA AVX 145846030000829+	30	4 Áin	0.1 Ám	2	0.016 in	0.4 mm	Surface Mount	Gold	0.093 in	2.35 mm	3 mm	Outer Shroud Contacts, Plug
KYOCERA AVX 145846060000829+	60	4 Áin	0.1 Ám	2	0.016 in	0.4 mm	Surface Mount	Gold	0.093 in	2.35 mm	3 mm	Outer Shroud Contacts, Plug
KYOCERA AVX 145846070000829+	70	4 Áin	0.1 Ám	2	0.016 in	0.4 mm	Surface Mount	Gold	0.093 in	2.35 mm	3 mm	Outer Shroud Contacts, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

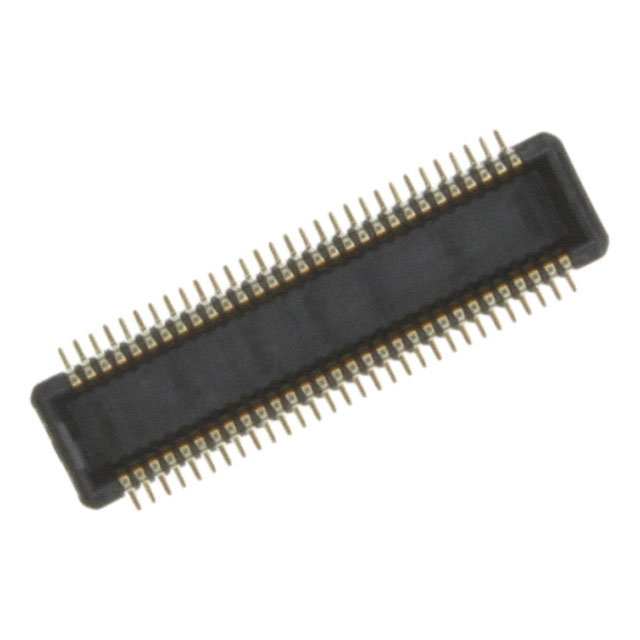

60 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
