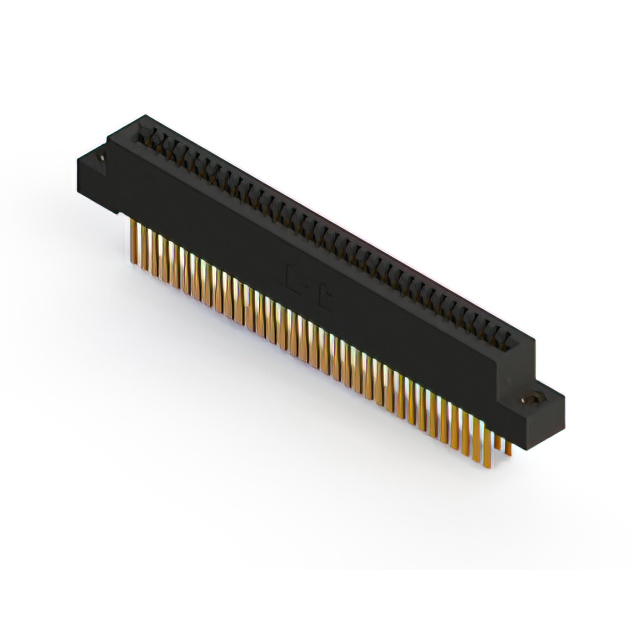

392-068-544-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-068-544-207
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-068-544-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
392-068 Series
| Part | Read Out | Contact Finish | Gender | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Card Type | Color | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Termination | Contact Type | Pitch [x] | Pitch [x] | Mounting Type | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Wire Wrap | Cantilever | 2.54 mm | 0.1 in | Through Hole | 2 | |
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Solder Wire Wrap | Cantilever | 2.54 mm | 0.1 in | Through Hole Right Angle | 2 | ||||
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Wire Wrap | Cantilever | 2.54 mm | 0.1 in | Through Hole | 2 | |
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Flush Mount M3 Threaded Insert Top Opening | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Solder | Cantilever | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 2 | Card Extender | ||
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Flush Mount M3 Threaded Insert Top Opening | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Wire Wrap | Cantilever | 2.54 mm | 0.1 in | Through Hole | 2 | |||
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Solder Eyelet(s) | Cantilever | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 2 | Card Extender |
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Solder | Cantilever | 2.54 mm | 0.1 in | Board Edge Straddle Mount | 2 | Card Extender |
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Wire Wrap | Cantilever | 2.54 mm | 0.1 in | Through Hole | 2 | |
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Solder Wire Wrap | Cantilever | 2.54 mm | 0.1 in | Through Hole Right Angle | 2 | |
EDAC Inc. | Dual | Gold | Female | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 34 | -40 °C | 105 ░C | 68 | Non Specified - Dual Edge | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Wire Wrap | Cantilever | 2.54 mm | 0.1 in | Through Hole | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
392-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
