1123341-1
ActiveTE Connectivity AMP Connectors

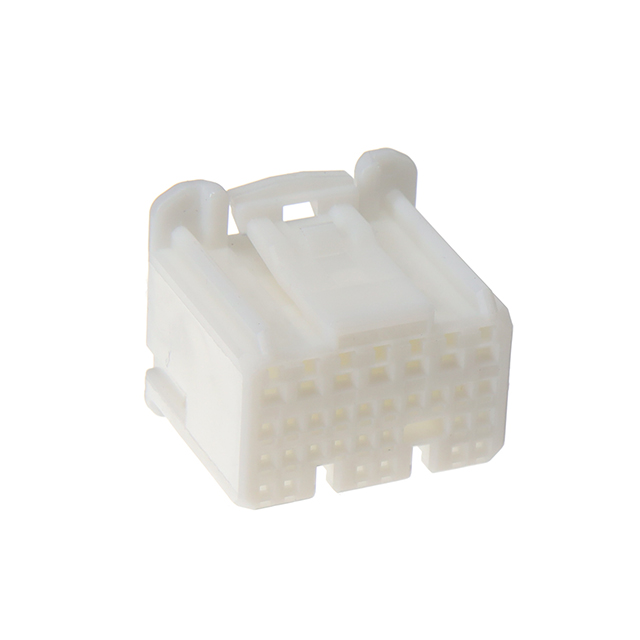

CONN PLUG HSG 31POS 2.20MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1123341-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 31POS 2.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1123341-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Note | Contacts Not Included |
| Number of Positions | 31 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.087 in |
| Pitch [x] | 2.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.23 | |
| 10 | $ 2.88 | |||
| 25 | $ 2.87 | |||
| 50 | $ 2.84 | |||
| 100 | $ 2.56 | |||
| 300 | $ 2.54 | |||
| 500 | $ 2.35 | |||
| 1000 | $ 2.10 | |||
| 2500 | $ 1.94 | |||
1123341 Series
CONN PLUG HSG 31POS 2.20MM
| Part | Note | Contact Termination | Connector Type | Insulation Material | Fastening Type | Color | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1123341-1 | Contacts Not Included | Crimp | Plug | Polybutylene Terephthalate (PBT) | Locking Ramp | Natural | Female Socket | 31 | -30 ░C | 105 ░C | 0.087 in | 2.2 mm |
Description
General part information
1123341 Series
31 Rectangular Connectors - Housings Plug Natural 0.087" (2.20mm)
