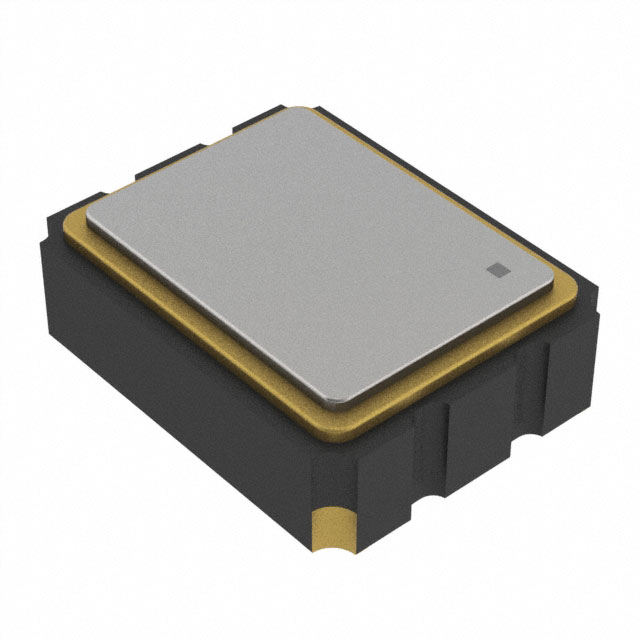

FK1220017Z
ActiveDiodes Inc
XTAL OSC XO 12.2880MHZ CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FK1220017Z
ActiveDiodes Inc
XTAL OSC XO 12.2880MHZ CMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FK1220017Z |
|---|---|
| Base Resonator | Crystal |
| Frequency | 12.288 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 1.15 mm |
| Height - Seated (Max) [Max] [z] | 0.045 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.30 | |
| Digi-Reel® | 1 | $ 1.30 | ||
| Tape & Reel (TR) | 3000 | $ 0.78 | ||
Description
General part information
FK1220017 Series
12.288 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
