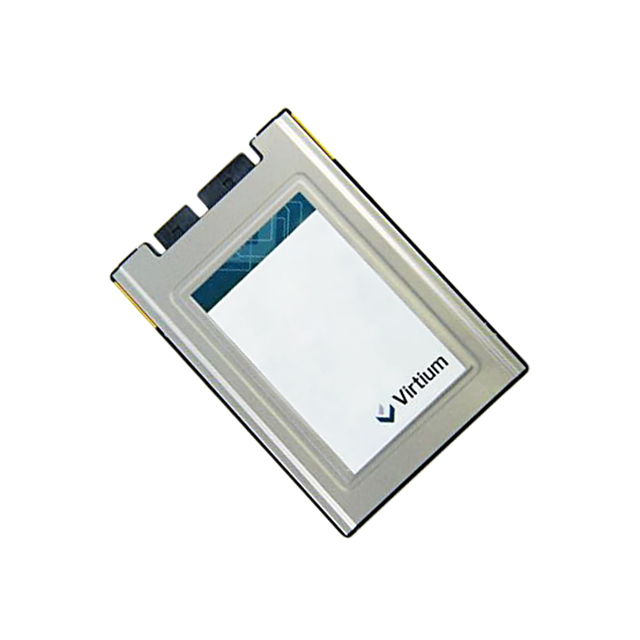

VSFB25XI016G

Virtium LLC

SSD 16GB 2.5" MLC SATA III 5V

Search across all available documentation for this part.

Virtium LLC

SSD 16GB 2.5" MLC SATA III 5V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VSFB25XI016G	VSFB25 Series

Form Factor	2.5 in	2.5 in
Memory Size	16 GB	16 - 480 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (MLC)	Solid State Drive (SSD) FLASH - NAND (MLC), Solid State Drive (SSD) FLASH - NAND (SLC)
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Size / Dimension [x]	100.5 mm	100.5 mm
Size / Dimension [y]	69.85 mm	69.85 mm
Size / Dimension [z]	5 mm	5 mm
Speed - Read	300 MB/s	300 - 530 MB/s
Speed - Write	135 MB/s	135 - 430 MB/s
Type	SATA III	SATA III

SSD 16GB 2.5" MLC SATA III 5V

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Form Factor	Type	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Speed - Write	Speed - Read	Memory Size
Virtium LLC VSFB25XI016G	100.5 mm	5 mm	69.85 mm	2.5 in	SATA III	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	135 MB/s	300 MB/s	16 GB
Virtium LLC VSFB25PI256G-V11	100.5 mm	5 mm	69.85 mm	2.5 in	SATA III	85 °C	-40 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	280 MB/s	370 MB/s	256 GB
Virtium LLC VSFB25PC016G-100	100.5 mm	5 mm	69.85 mm	2.5 in	SATA III	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (SLC)	280 MB/s	370 MB/s	16 GB
Virtium LLC VSFB25CC480G-100	100.5 mm	5 mm	69.85 mm	2.5 in	SATA III	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	430 MB/s	530 MB/s	480 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 102.30

General part information

Solid State Drive (SSD) FLASH - NAND (MLC) 16GB SATA III 2.5" 5V

Technical documentation and resources

No documents available
