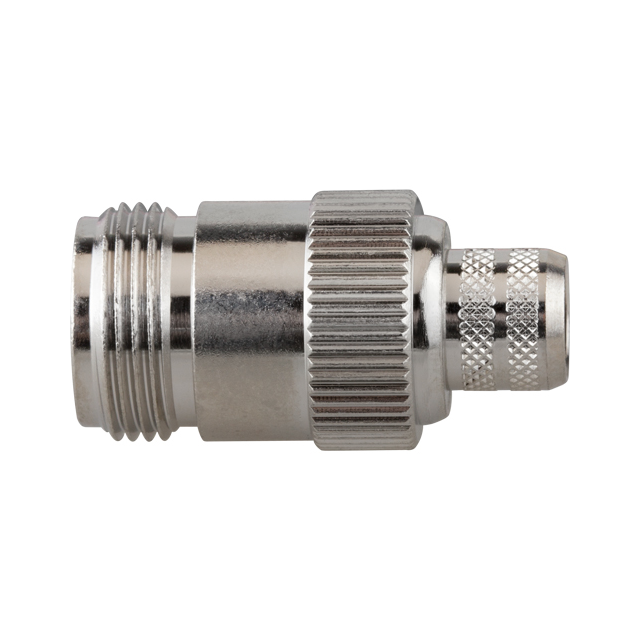

RP-1028-I

Active

RF Industries

RP N FEMALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

RP N FEMALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RP-1028-I

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-8
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-N Type
Connector Type	Male Pin, Jack
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Dielectric Material	Body Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Number of Ports	Connector Type	Body Material	Voltage Rating	Connector Style	Housing Color	Center Contact Plating	Impedance	Contact Termination	Shield Termination	Cable Group	Center Contact Material
RF Industries RP-1028-I	Polytetrafluoroethylene (PTFE)	Nickel	Free Hanging (In-Line)	-65 ░C	165 °C	11 GHz	1	Jack Male Pin	Brass	1000 VDC	RP-N Type	Silver	Gold	50 Ohms	Crimp Solder	Crimp	RG-8	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-N Type Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
