1607069
ActivePhoenix Contact

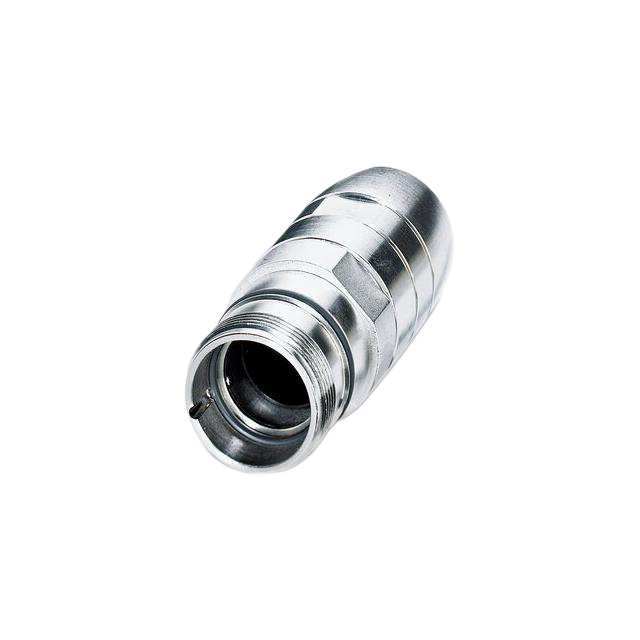

CONN INSERT SHELL INLINE
1607069
ActivePhoenix Contact
CONN INSERT SHELL INLINE
Description
General part information
1607069
Position Circular Connector Insert Shell Free Hanging (In-Line) Backshell
Technical Specifications
Parameters and characteristics for this part
| Specification | 1607069 |
|---|---|
| Connector Type | Insert Shell |
| Fastening Type | Threaded |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included, Insert Not Included |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -20 °C |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23 |
| Shielding | Shielded |
