MS3476L22-55PWL
ActiveAmphenol Aerospace Operations
MATRIX 26482 II
MS3476L22-55PWL
ActiveAmphenol Aerospace Operations
MATRIX 26482 II
Description
General part information
MS3476L22-55PWL

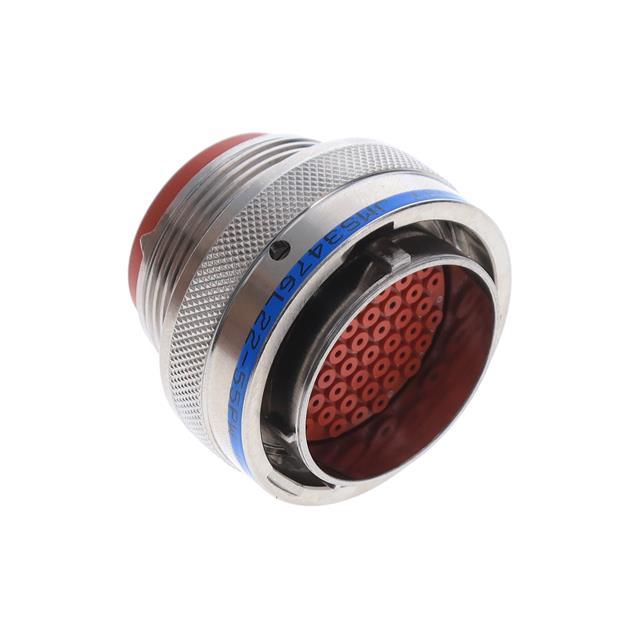

55 Position Circular Connector Plug, Male Pins Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3476L22-55PWL |
|---|---|
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Grade | Military |
| Ingress Protection | Fluid Resistant |
| Insert Material | Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 55 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | W |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series II |
| Shell Finish | Electroless Nickel |
| Shell Material | Aluminum |
| Shell Size - Insert (Maximum) | 55 |
| Shell Size - Insert (Minimum) | 22 |
| Shielding | Unshielded |
| Termination | Crimp |
