432302-13-0
ActiveCurtis Industries
CONN BARRIER STRP 13CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
432302-13-0
ActiveCurtis Industries
CONN BARRIER STRP 13CIRC 0.438"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 432302-13-0 | 432302 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | Insulated, Quick Connect (0.110") | Insulated, Quick Connect (0.110") |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polypropylene (PP) | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel, Chassis | Panel, Chassis |
| Number of Circuits | 13 | 3 - 26 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 13 | 3 - 26 |
| Number of Wire Entries | - | 22 |
| Operating Temperature | 105 C | 105 C |
| Pitch [x] | 11.12 mm | 11.12 mm |
| Pitch [x] | 0.438 in | 0.438 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Nickel | Nickel |
| Terminal Screw Material | Brass | Brass |
| Top Termination | Screws | Screws |
| Voltage Rating | 600 V | 600 V |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
432302 Series
CONN BARRIER STRP 26CIRC 0.438"
| Part | Pitch [x] | Pitch [x] | Number of Wire Entries | Barrier Type | Operating Temperature | Current Rating (Amps) | Terminal Screw Material | Mounting Type | Number of Rows | Bottom Termination | Material Flammability Rating | Number of Circuits | Wire Gauge [Min] | Wire Gauge [Max] | Material - Insulation | Top Termination | Terminal Screw Finish | Terminal Block Type | Features | Voltage Rating | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 432302-26-0 | 11.12 mm | 0.438 in | 26 | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 26 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | |
Curtis Industries 432302-03-0 | 11.12 mm | 0.438 in | 3 | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 3 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | |
Curtis Industries 432302-22-0 | 11.12 mm | 0.438 in | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 22 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | 22 | |
Curtis Industries 432302-10-0 | 11.12 mm | 0.438 in | 10 | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 10 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | |
Curtis Industries 432302-20-0 | 11.12 mm | 0.438 in | 20 | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 20 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | |
Curtis Industries 432302-19-0 | 11.12 mm | 0.438 in | 19 | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 19 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | |
Curtis Industries 432302-16-0 | 11.12 mm | 0.438 in | 16 | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 16 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | |
Curtis Industries 432302-12-0 | 11.12 mm | 0.438 in | 12 | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 12 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | |
Curtis Industries 432302-25-0 | 11.12 mm | 0.438 in | 25 | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 25 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V | |
Curtis Industries 432302-24-0 | 11.12 mm | 0.438 in | 2 Wall (Dual) | 105 C | 20 A | Brass | Chassis, Panel | 1 | Insulated, Quick Connect (0.110") | UL94 V-0 | 24 | 12 AWG | 22 AWG | Polypropylene (PP) | Screws | Nickel | Barrier Block | Flange | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.81 | |
| 10 | $ 9.51 | |||
| 25 | $ 8.97 | |||
| 50 | $ 8.54 | |||
| 100 | $ 8.38 | |||
| 250 | $ 7.29 | |||
| 500 | $ 7.02 | |||
| 1000 | $ 6.75 | |||
Description
General part information
432302 Series

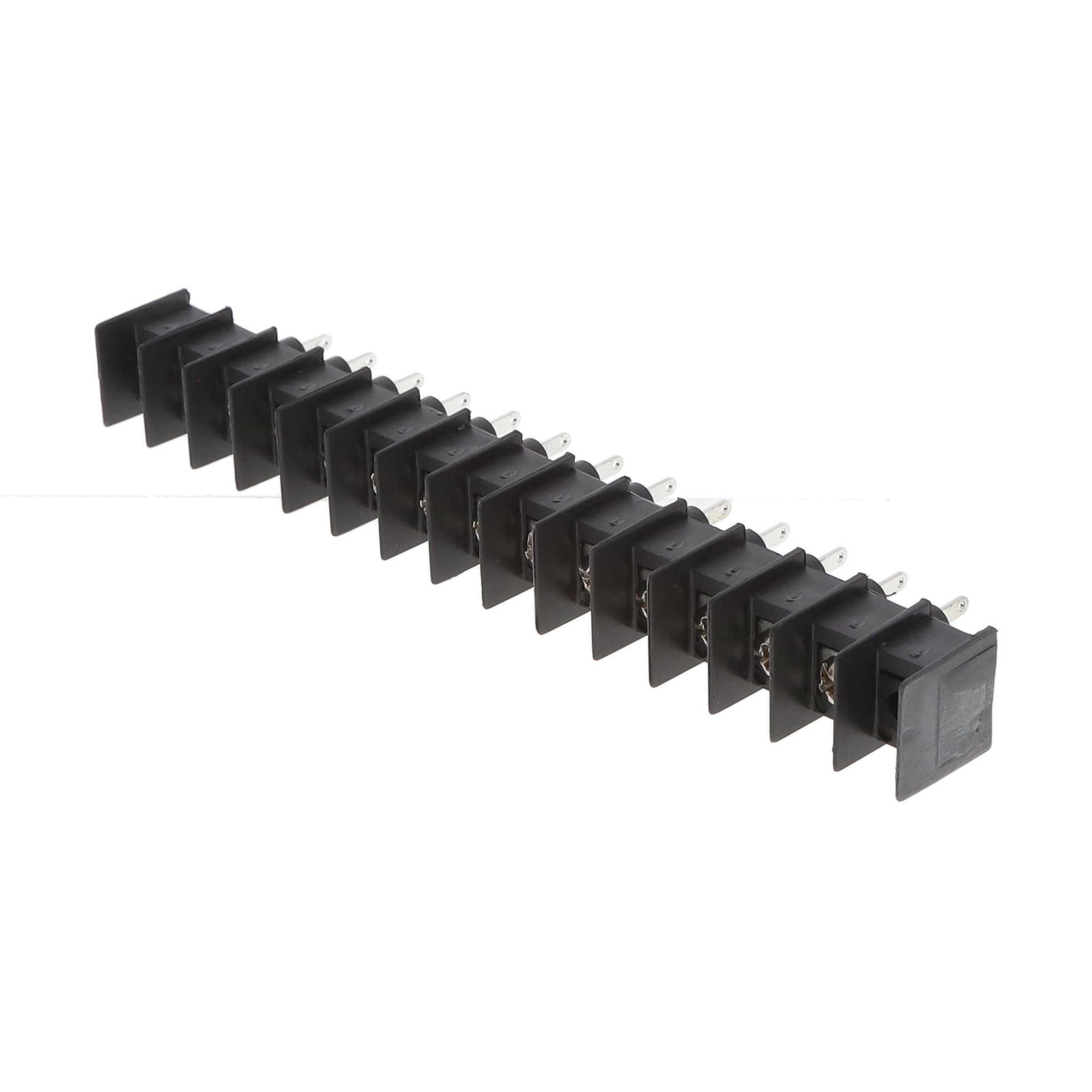

13 Circuit 0.438" (11.12mm) Barrier Block Connector Screws
