Description
General part information

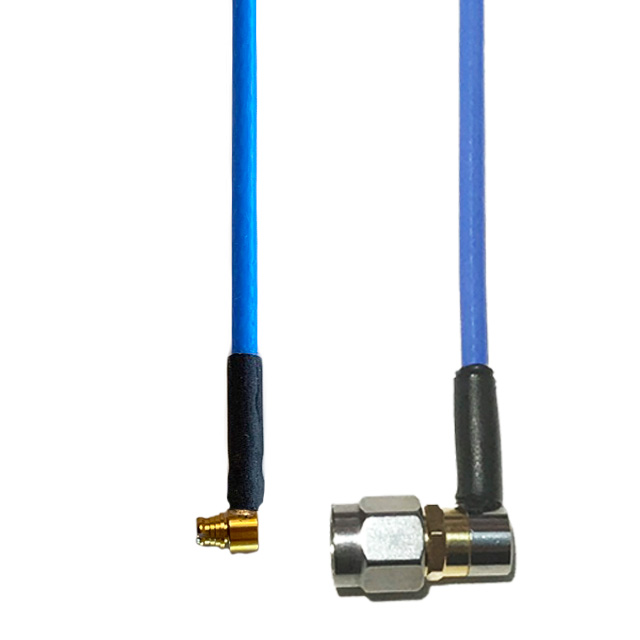

LSA28-S2PR-S06
Cable Assembly Coaxial SMA to SMP 0.085" Flexible Cable 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LSA28-S2PR-S06 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMP Jack, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Diameter | 0.085 " |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.085 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.085 |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 18 GHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, SMP |
