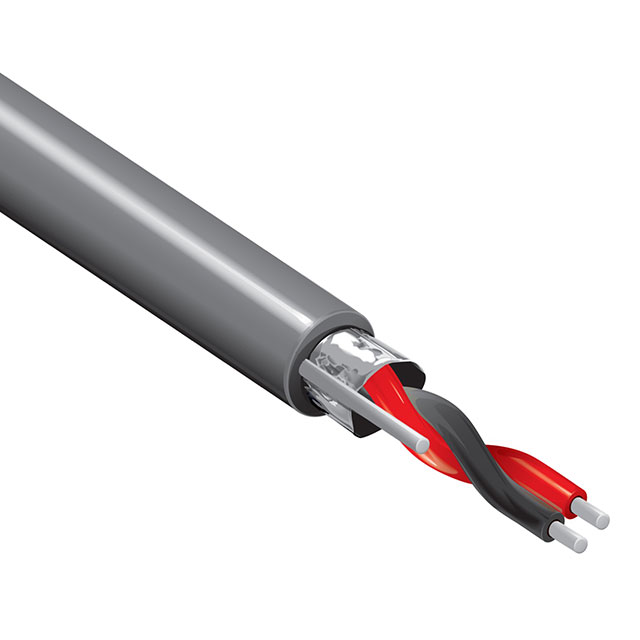

8450 010U500

Active

Belden Inc.

CABLE 2COND 22AWG BLACK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	8450 010U500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	3 mm
Jacket (Insulation) Diameter [diameter]	0.118 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.457 mm
Jacket (Insulation) Thickness	0.018 in
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Wire Gauge	22 AWG

Part	Number of Conductors	Shield Material	Length	Length [x]	Length	Jacket (Insulation) Material	Cable Type	Conductor Insulation	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Shield Coverage
Belden Inc. 8450 0101000	2	Aluminum	15.24 m 304.8 m	50 ft 100 ft 500 '	1000 ft	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Polypropylene (PP)	30.5 m 152.4 m	0.457 mm	0.018 in	Foil	22 AWG	3 mm	0.118 in	Solid	Black	-20 C	105 ░C	Copper Tinned	100 %
Belden Inc. 8450 010U500	2	Aluminum		500 '		Poly-Vinyl Chloride (PVC)	Multi-Conductor	Polypropylene (PP)	152.4 m	0.457 mm	0.018 in	Foil	22 AWG	3 mm	0.118 in	Solid	Black	-20 C	105 ░C	Copper Tinned	100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 22 AWG Foil 500.0' (152.4m)
