Description
General part information

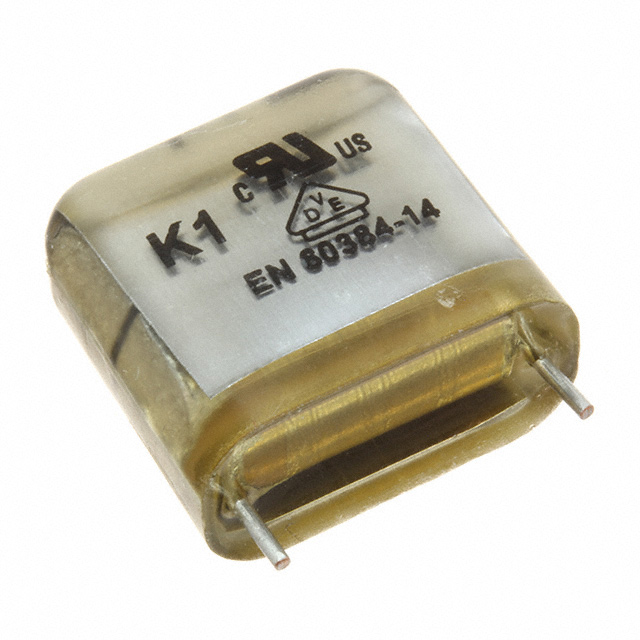

MPX21W2330FD00MJ00
0.033 µF Film Capacitor 275V 630V Paper, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | MPX21W2330FD00MJ00 |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 0.033 µF |
| Dielectric Material | Metallized, Paper |
| Features | Low ESR |
| Height - Seated (Max) | 0.551 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | X2 |
| Size / Dimension Length | 0.748 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage Rating - AC | 275 VAC |
| Voltage Rating - DC | 630 V |
