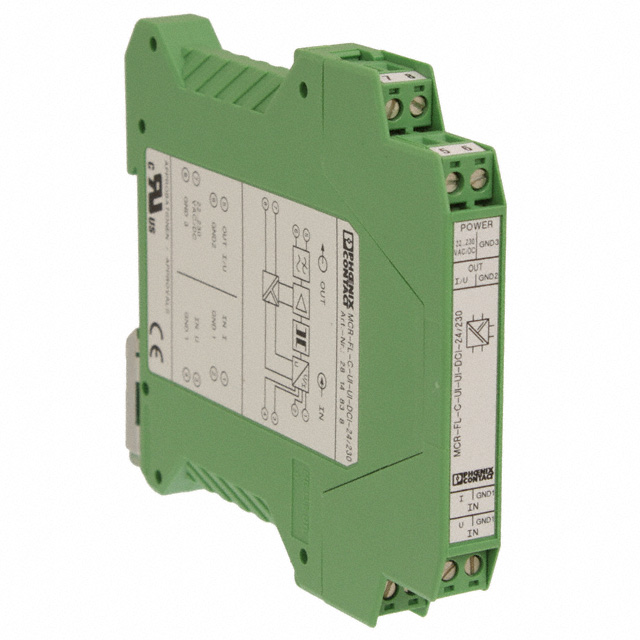

2814838
ObsoletePhoenix Contact
3 WAY ISOLATING AMP 4-20MA
2814838
ObsoletePhoenix Contact
3 WAY ISOLATING AMP 4-20MA
Description
General part information
2814838
3 WAY ISOLATING AMP 4-20MA
Technical Specifications
Parameters and characteristics for this part
| Specification | 2814838 |
|---|---|
| Input Current Range (Maximum) | 20 mA |
| Input Current Range (Minimum) | 0 mA |
| Input Range Types | Current, Voltage |
| Input Type | Voltage, Current |
| Input Voltage Range (Maximum) | 10 V |
| Input Voltage Range (Minimum) | 0 mV |
| Isolation | 4000 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output Current Range (Max) | 20 mA |
| Output Current Range (Min) | 0 mA |
| Output Type | Current, Voltage |
| Output Voltage Range (Max) | 10 V |
| Output Voltage Range (Min) | 0 V |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply (Maximum) | 253 V |
| Voltage - Supply (Minimum) | 20 VDC |
