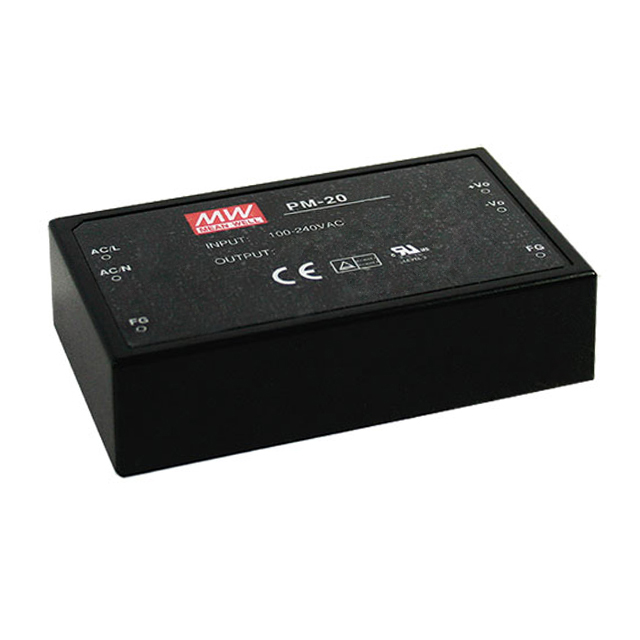

PM-20-15
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 15V 21W
PM-20-15
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 15V 21W
Description
General part information
PM-20-15
Enclosed AC DC Converters 1 Output 15V 1.4A 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PM-20-15 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, CB, TUV, CE |
| Current - Output (Max) | 1.4 A |
| Efficiency | 83 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 21 W |
| Size / Dimension Height | 0.89 in |
| Size / Dimension Length | 3.7 in |
| Size / Dimension Width | 2.2 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Output 1 | 15 V |
