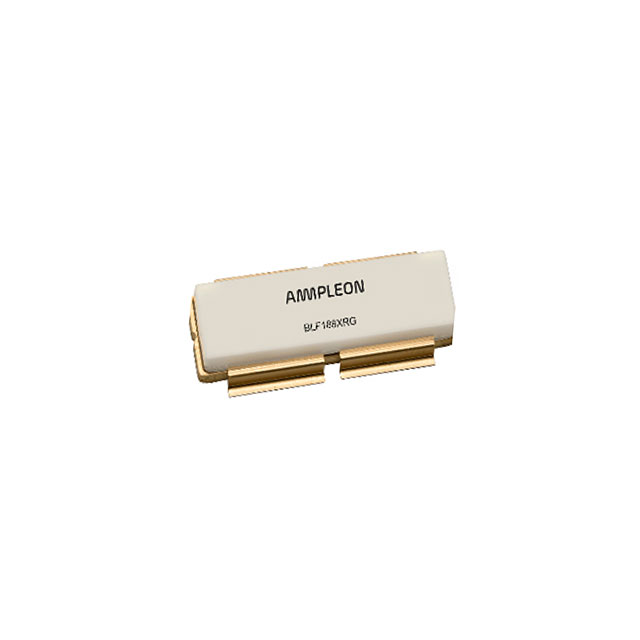

BLF188XRGJ
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 50V CDFM4
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLF188XRGJ
ActiveAmpleon USA Inc.
RF MOSFET LDMOS 50V CDFM4
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BLF188XRGJ | BLF188 Series |
|---|---|---|
| Configuration | Common Source, Dual | Common Source, Dual |
| Current - Test | 40 mA | 40 mA |
| Frequency | 108 MHz | 108 MHz |
| Gain | 24.4 dB | 24.4 dB |
| Mounting Type | Chassis Mount | Chassis Mount, Surface Mount |
| Package / Case | SOT-1248C | SOT-1248C, SOT-539B, SOT-539A |
| Power - Output | 1.4 kW | 1.4 kW |
| Supplier Device Package | CDFM4 | CDFM4, SOT539B, SOT539A |
| Voltage - Rated | 135 V | 135 V |
| Voltage - Test | 50 V | 50 V |
BLF188 Series
RF MOSFET LDMOS 50V CDFM4
| Part | Frequency | Supplier Device Package | Current - Test | Power - Output | Configuration | Package / Case | Voltage - Rated | Mounting Type | Voltage - Test | Gain |
|---|---|---|---|---|---|---|---|---|---|---|
Ampleon USA Inc. BLF188XRGJ | 108 MHz | CDFM4 | 40 mA | 1.4 kW | Common Source, Dual | SOT-1248C | 135 V | Chassis Mount | 50 V | 24.4 dB |
Ampleon USA Inc. BLF188XRSU | 108 MHz | SOT539B | 40 mA | 1.4 kW | Common Source, Dual | SOT-539B | 135 V | Surface Mount | 50 V | 24.4 dB |
Ampleon USA Inc. BLF188XRU | 108 MHz | SOT539A | 40 mA | 1.4 kW | Common Source, Dual | SOT-539A | 135 V | Chassis Mount | 50 V | 24.4 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 216.15 | |
| 10 | $ 207.01 | |||
| 25 | $ 202.45 | |||
| Digi-Reel® | 1 | $ 216.15 | ||
| 10 | $ 207.01 | |||
| 25 | $ 202.45 | |||
| Tape & Reel (TR) | 100 | $ 196.36 | ||
Description
General part information
BLF188 Series
RF Mosfet 50 V 40 mA 108MHz 24.4dB 1400W CDFM4
