1771325
ObsoletePhoenix Contact
CONN BASE BOTTOM ENTRY SZB10
1771325
ObsoletePhoenix Contact
CONN BASE BOTTOM ENTRY SZB10
Description
General part information
1771325

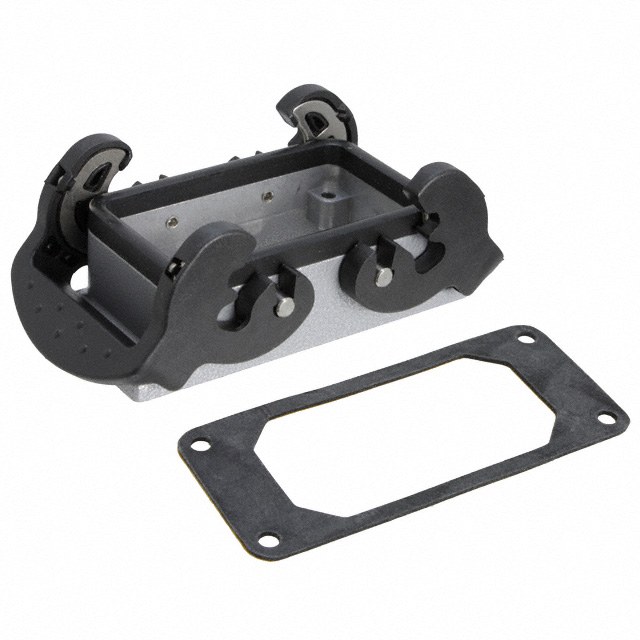

Base - Panel Mount Connector Bottom Entry B10
Technical Specifications
Parameters and characteristics for this part
| Specification | 1771325 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B10 |
| Size / Dimension Height | 1.142 in |
| Size / Dimension Length | 3.661 in |
| Size / Dimension Width | 1.693 in |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
