8458 0605000

Active

Belden Inc.

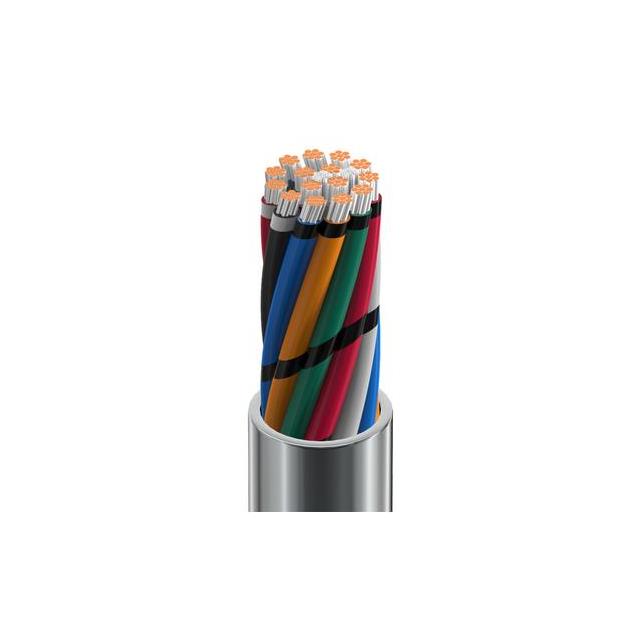

CABLE 15COND 22AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 15COND 22AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8458 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Conductor Insulation	Usage	Length	Length	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Wire Gauge	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]
Belden Inc. 8458 0601000	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	1000 ft	304.8 m	Multi-Conductor	-20 C	80 C	Poly-Vinyl Chloride (PVC)	22 AWG	UL Style 2576	7	30 AWG	15	Copper Tinned	Chrome	0.04 in	1.016 mm
Belden Inc. 8458 060500	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation		15.24 m	Multi-Conductor	-20 C	80 C	Poly-Vinyl Chloride (PVC)	22 AWG		7	30 AWG	15	Copper Tinned	Chrome	0.04 in	1.016 mm	50 ft 500 '	152.4 m
Belden Inc. 8458 0605000	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation			Multi-Conductor	-20 C	80 C	Poly-Vinyl Chloride (PVC)	22 AWG	UL Style 2576	7	30 AWG	15	Copper Tinned	Chrome	0.04 in	1.016 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 4.82

General part information

15 Conductor Multi-Conductor Cable Chrome 22 AWG 5000' (1524.0m)
