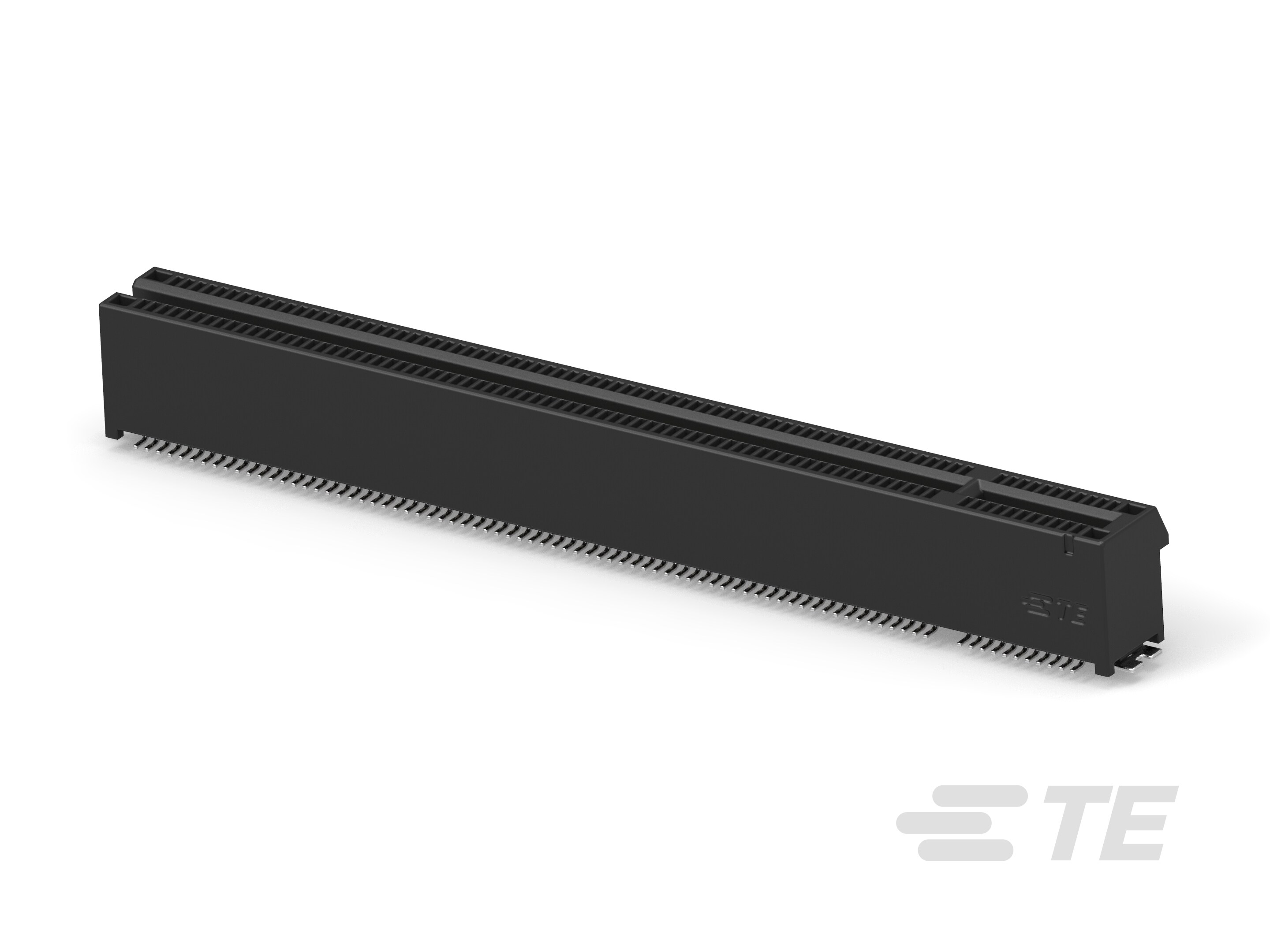

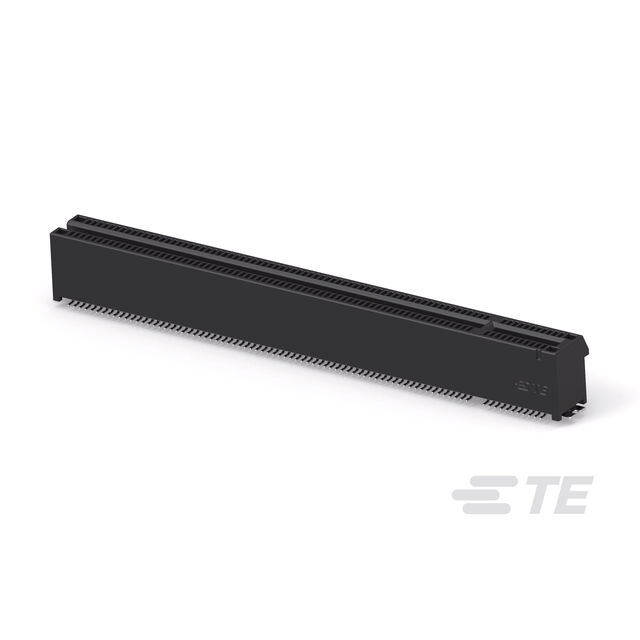

3-2349820-4
ActiveTE Connectivity AMP Connectors
PCI EXPRESS / PCI CONNECTORS PCIEG4,SMT,V,164P,G/F,ML,HT,OEW
3-2349820-4
ActiveTE Connectivity AMP Connectors
PCI EXPRESS / PCI CONNECTORS PCIEG4,SMT,V,164P,G/F,ML,HT,OEW
Description
General part information
2349820 Series
Board-to-Board, 164 Position, 1 mm [.039 in] Centerline, Vertical, Black, 11.25 mm Height, 7.5 mm Width, Power & Signal, PCI & PCI Express Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2349820-4 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Locking Ramp, Board Guide |
| Gender | Female |
| Material - Insulation | LCP, Liquid Crystal Polymer |
| Mounting Type | Surface Mount |
| Number of Bay | 71 |
| Number of Positions | 11, 164 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.039 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 rows |
