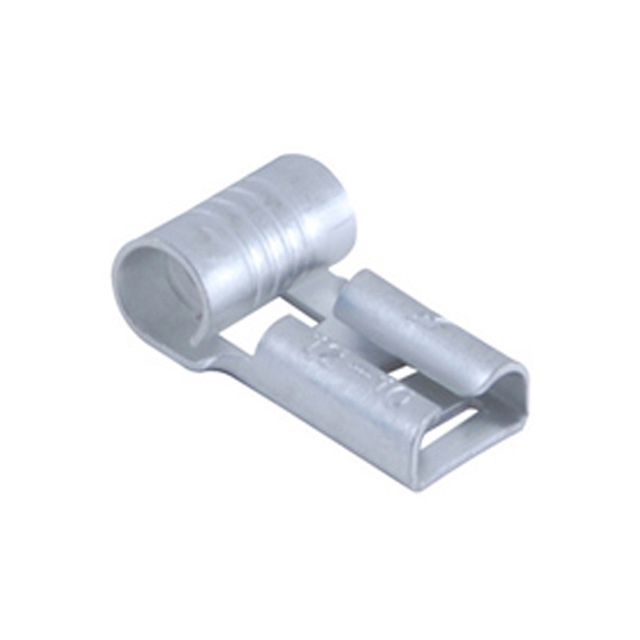

76-FT12L
ActiveNTE Electronics, Inc
NON INS FLAG TERM 12-10WG 50 BAG
76-FT12L
ActiveNTE Electronics, Inc
NON INS FLAG TERM 12-10WG 50 BAG
Description
General part information
76-FT12L
0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Insulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 76-FT12L |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Angle | 90 ° |
| Terminal Type | Flag, Angled |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
