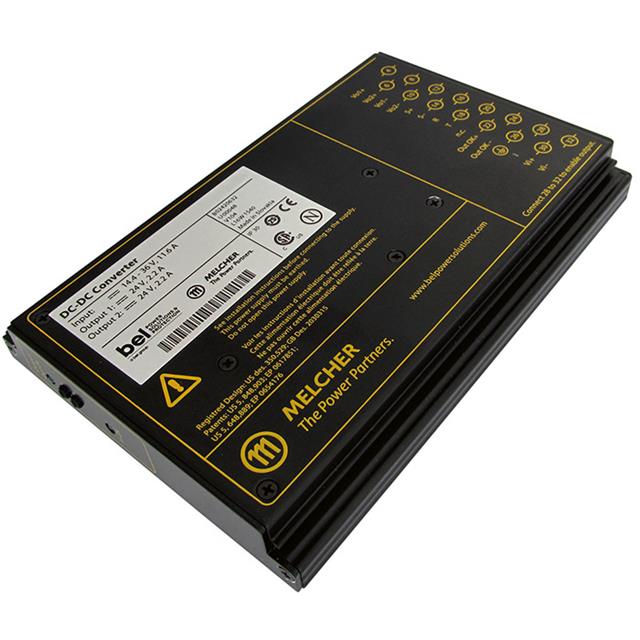

BQ2660-9RG

Active

Bel Power Solutions

DC/DC CONVERTER 2X24V 245W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC CONVERTER 2X24V 245W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BQ2660-9RG	BQ2660 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Approval Agency	EAC, CSAus, NEMKO, CE	EAC, CSAus, NEMKO, CE, cCSAus, TUV, EN, CSA, UL, IEC
Current - Output (Max)	-	2.75 A
Current - Output (Max) [Max]	5.1 A	5.1 A
Current - Output (Max) [Max]	5.1 A	5.1 A
Efficiency	90.5 %	90.5 %
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	2	2
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Power (Watts)	245 W	132 - 245 W
Size / Dimension [x]	6.46 "	6.46 - 6.73 "
Size / Dimension [x]	164 mm	164 - 171 mm
Size / Dimension [y]	4.37 "	4.37 "
Size / Dimension [y]	111 mm	111 mm
Size / Dimension [z]	0.78 in	0.78 in
Size / Dimension [z]	19.8 mm	19.8 mm
Type	Conformal Coated, Enclosed	Conformal Coated, Enclosed
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	14.4 V	14.4 V
Voltage - Isolation	2.1 kV	2.1 kV
Voltage - Output 1	24 V	24 V
Voltage - Output 2	24 V	24 V

DC/DC CONVERTER 2X24V 245W

Part	Voltage - Output 1	Number of Outputs	Applications	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Approval Agency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Power (Watts)	Mounting Type	Current - Output (Max)
Bel Power Solutions BQ2660-9RG	24 V	2	ITE (Commercial), Railway	5.1 A	5.1 A	CE, CSAus, EAC, NEMKO	Conformal Coated, Enclosed	6.46 "	4.37 "	0.78 in	111 mm	19.8 mm	164 mm	14.4 V	24 V	2.1 kV	36 V	-40 °C	71 °C	90.5 %	245 W	Chassis Mount
Bel Power Solutions BQ2660-7R	24 V	2	ITE (Commercial), Railway			cCSAus, CE, TUV	Conformal Coated, Enclosed	6.46 "	4.37 "	0.78 in	111 mm	19.8 mm	164 mm	14.4 V	24 V		36 V	-25 °C	71 °C	90.5 %	132 W	Chassis Mount	2.75 A
Bel Power Solutions BQ2660-9R	24 V	2	ITE (Commercial), Railway	5.1 A	5.1 A	CE, CSA, EN, IEC, TUV, UL	Conformal Coated, Enclosed	6.73 in	4.37 "	0.78 in	111 mm	19.8 mm	171 mm	14.4 V	24 V		36 V	-40 °C	71 °C	90.5 %	132 W	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated DC DC Converter 2 Output 24V 24V 5.1A, 5.1A 36V Input
