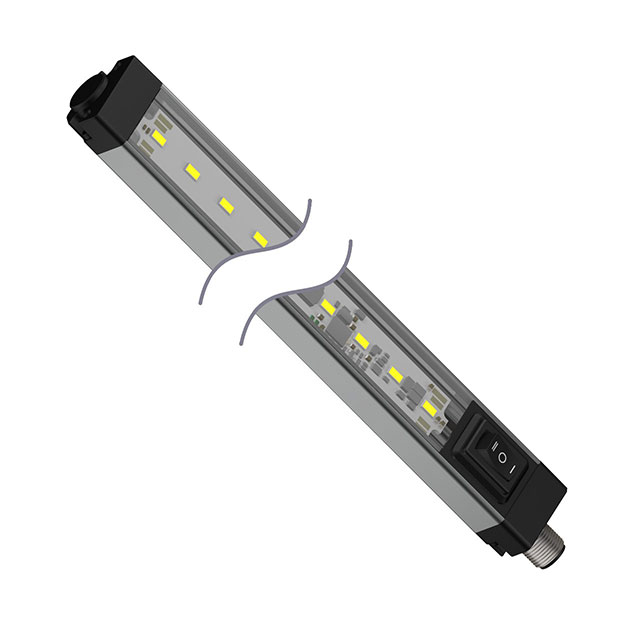

Specification	WLS28-2XW850DXPBQ

Approval Agency	cULus, CE
Features	High/Low/Off Switching, Cascadable
Housing Material	Aluminum, Al
Illumination Color	Cool, White
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Length	33.46 in
Lens Type	Flat, Diffused
Luminous Flux	2400 lm
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Profile Height	0.83 in
Profile Width	1.1 in
Rated Life	75000 Hours
Termination Style	Connector (M12)
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	12 VDC

WLS28 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Profile Width	Profile Height	Rated Life	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Features	Approval Agency	Luminous Flux	Length	Housing Material	Illumination Color	Lens Type	Termination Style	Luminous Flux Colors	Luminous Flux (White)	Luminous Flux (Red)	Luminous Flux (Green)
BANNER ENGINEERING WLS28-2CW1130DXPBQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable High/Low/Off Switching	CE cULus	3200 lm	44.49 in	Al Aluminum	Cool White	Diffused Flat	Connector (M12)
BANNER ENGINEERING WLS28-2CW990XQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2800 lm	38.98 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2CWW850DXQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2400 lm	33.46 in	Al Aluminum	Warm White	Diffused Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XW990XQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2800 lm	38.98 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XW990SQ	-40 °C	70 °C	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2800 lm	38.98 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XW850XQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable Dimmable High/Low/Off Switching	CE cULus	2400 lm	33.46 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XWR-1130DXQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus		44.49 in	Al Aluminum	Red White	Diffused Flat	Connector (M12)	Red White	1425 lm	600 lm
BANNER ENGINEERING WLS28-2XW285XQ	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable Dimmable High/Low/Off Switching	CE cULus	800 lm	11.22 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)
BANNER ENGINEERING WLS28-2XWGRXX3-0570X24Q	-40 °C	70 °C	Dust Protected	IP50	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus		22.44 "	Al Aluminum	Green Red White	Clear Flat	Connector (M12)	Green Red White	1300 lm	370 lm	800 lm
BANNER ENGINEERING WLS28-2XW850SQ	-40 °C	70 °C	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	1.1 in	0.83 in	75000 Hours	12 VDC	30 VDC	Cascadable	CE cULus	2400 lm	33.46 in	Al Aluminum	Cool White	Clear Flat	Connector (M12)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

WLS28-2XW850DXPBQ | Datasheet

Drawing EN
