CT-156.250MBC-T
ActiveTXC CORPORATION
XTAL OSC SO 156.2500MHZ LVDS SMD
CT-156.250MBC-T
ActiveTXC CORPORATION
XTAL OSC SO 156.2500MHZ LVDS SMD
Description
General part information
CT-156.250MBC-T

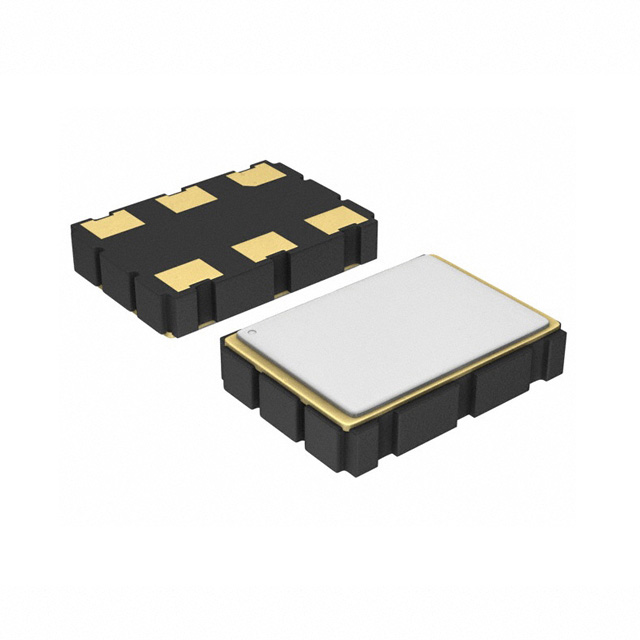

156.25 MHz SO (SAW) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CT-156.250MBC-T |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 80 mA |
| Frequency | 156.25 MHz |
| Frequency Stability | 100 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.055 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output | LVDS |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.126 in |
| Type | SO (SAW) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
