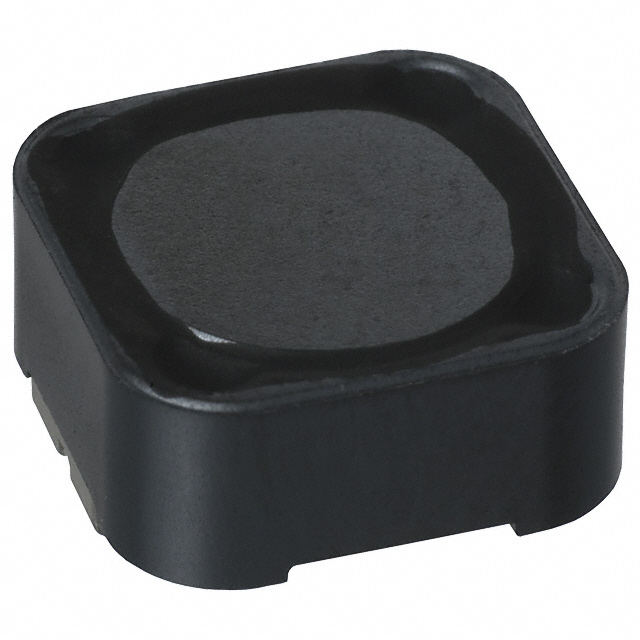

CDRH125-681MC
ObsoleteSumida America Components Inc.
FIXED IND 680UH 480MA 1.2OHM SMD
CDRH125-681MC
ObsoleteSumida America Components Inc.
FIXED IND 680UH 480MA 1.2OHM SMD
Description
General part information
CDRH125-681MC
680 µH Shielded Inductor 480 mA 1.2Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH125-681MC |
|---|---|
| Current Rating | 480 mA |
| DC Resistance (DCR) (Max) | 1.2 Ohm |
| Height - Seated (Max) | 0.236 in |
| Inductance | 680 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.472 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
