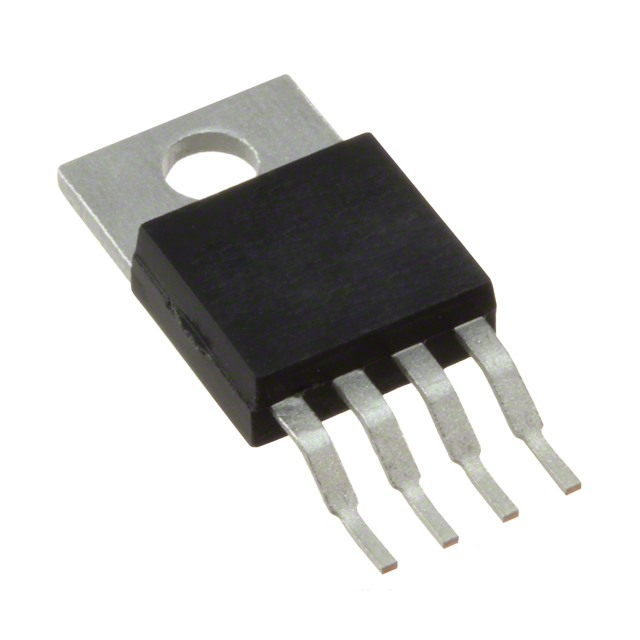

Y21232R00000Q9R
ActiveVPG Foil Resistors
RES SMD 2 OHM 0.02% 8W TO220-4
Y21232R00000Q9R
ActiveVPG Foil Resistors
RES SMD 2 OHM 0.02% 8W TO220-4
Description
General part information
Y21232R00000Q9R
2 Ohms ±0.02% 8W Chip Resistor TO-220-4, SMD Moisture Resistant, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y21232R00000Q9R |
|---|---|
| Composition | Metal Foil |
| Features | Moisture Resistant, Non-Inductive |
| Height - Seated (Max) | 0.158 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SMD, TO-220-4 |
| Package Name | TO-220-4 |
| Power (Watts) | 8 W |
| Resistance | 2 Ohm |
| Size / Dimension Length | 0.615 in |
| Size / Dimension Width | 0.4 in |
| Temperature Coefficient | 0.2 ppm/°C |
| Tolerance | 0.02 % |
