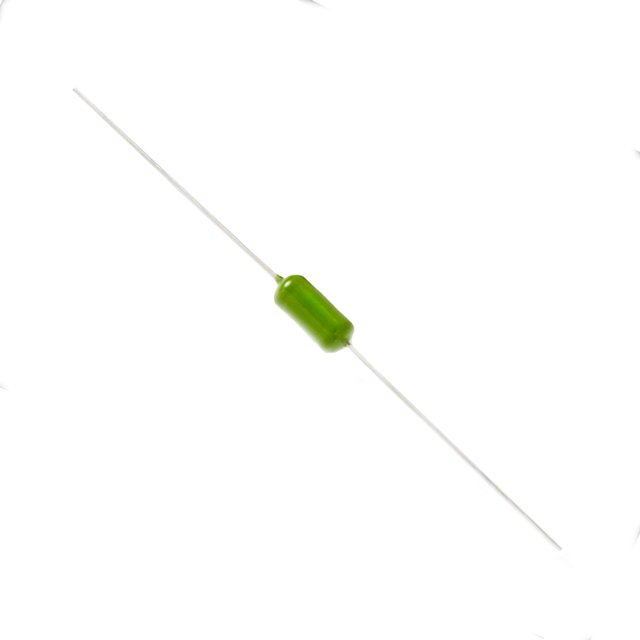

07771.25MRET1P
ObsoleteLITTELFUSE
FUSE BRD MNT 1.25A 250VAC AXIAL
07771.25MRET1P
ObsoleteLITTELFUSE
FUSE BRD MNT 1.25A 250VAC AXIAL
Description
General part information
07771.25MRET1P
1.25 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | 07771.25MRET1P |
|---|---|
| Approval Agency | CQC, TUV, KC, UR |
| Breaking Capacity | 50 A |
| Current Rating | 1.25 A |
| DC Cold Resistance | 70 mOhm |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 2.7 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.142 in |
| Size / Dimension Length | 0.354 in |
| Voltage Rating - AC | 250 V |
