DLA20-ACA-G-2

Active

C-TON Industries

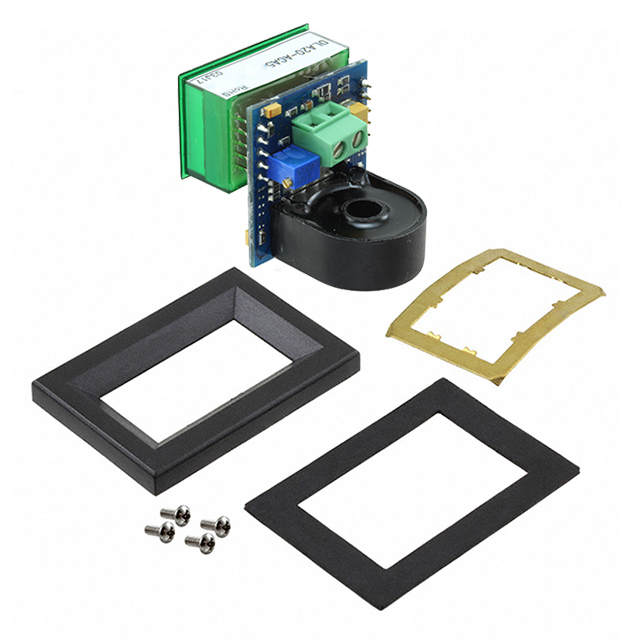

AMMETER 0-19.99A LED PANEL MOUNT

Search across all available documentation for this part.

Active

C-TON Industries

AMMETER 0-19.99A LED PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	DLA20-ACA-G-2

Display Characters - Height	9.4 mm
Display Characters - Height	0.37 in
Display Type	LED - Green Characters
Measuring Range [Max]	19.99 A
Measuring Range [Min]	0
Measuring Type	Current
Mounting Type	Panel Mount - Bezel
Number of Characters Per Row	3.5
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	264 VAC
Voltage - Supply [Min]	85 VAC

AMMETER 0-19.99A LED PANEL MOUNT

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Termination Style	Number of Characters Per Row	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Measuring Range [Min]	Measuring Range [Max]	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Display Characters - Height	Display Characters - Height	Measuring Type
C-TON Industries DLA20-ACA-G-2	85 VAC	264 VAC	Panel Mount - Bezel	Screw Terminal	3.5	-10 °C	50 °C	0	19.99 A	Ammeter	33.93 mm	21.29 mm	LED - Green Characters	9.4 mm	0.37 in	Current

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ammeter LED - Green Characters Display Panel Mount - Bezel
