Description

General part information

SSW-104 Series

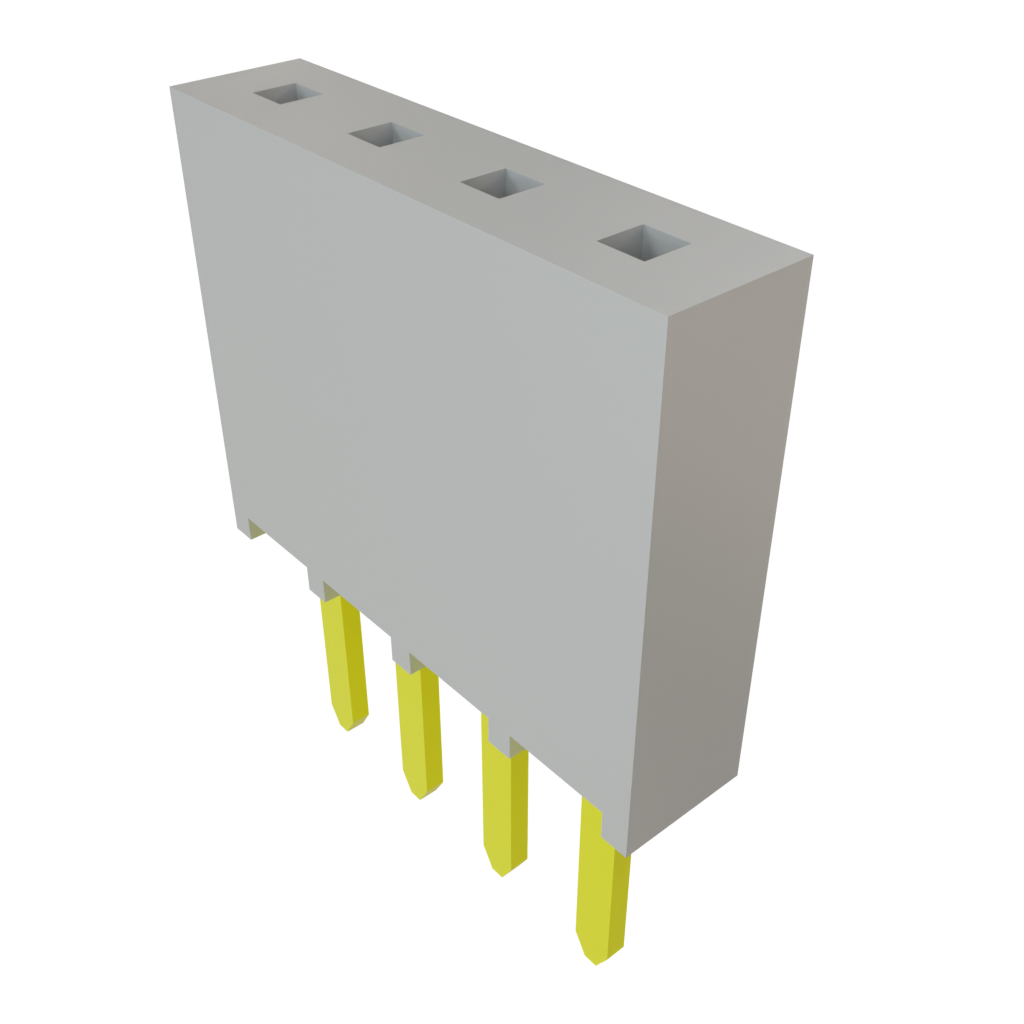

4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Technical Specifications

Parameters and characteristics for this part

SpecificationSSW-104-22-G-S
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating20 Ąin
Contact Finish Thickness - Post3 µin
Contact Length - Post0.194 in
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeForked
Current Rating (Per Contact)4.7 A
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height0.335 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions4
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Pitch - Mating0.1 in
StyleBoard, Board or Cable
TerminationSolder
