92008-2

Active

TE Connectivity AMP Connectors

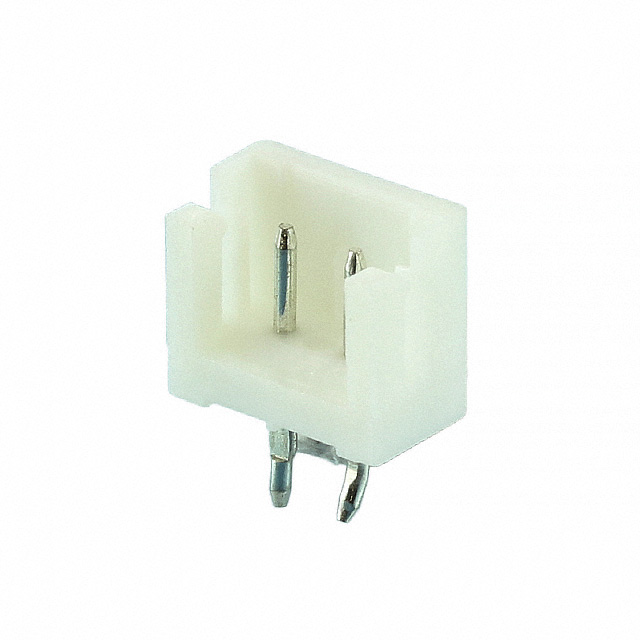

CONN HEADER VERT 2POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 2.5MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	92008-2	92008 Series

Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	0.13 in	0.13 in
Contact Length - Post	3.3 mm	3.3 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	0.255 "	0.255 "
Insulation Height	6.48 mm	6.48 mm
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2 - 4
Number of Positions Loaded	All	All
Number of Rows	1	1
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder

CONN HEADER VERT 4POS 2.5MM

Part	Style	Mounting Type	Contact Material	Insulation Color	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Type	Connector Type	Number of Positions Loaded	Termination	Number of Rows	Shrouding	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Contact Shape	Number of Positions
TE Connectivity AMP Connectors 92008-4	Board to Cable/Wire	Through Hole	Brass	White	Locking Ramp	0.13 in	3.3 mm	Male Pin	Header	All	Kinked Pin, Solder	1	Unshrouded	2.5 mm	0.098 in	Tin	0.255 "	6.48 mm	UL94 V-0	Nylon, Polyamide (PA)	Circular	4
TE Connectivity AMP Connectors 92008-2	Board to Cable/Wire	Through Hole	Brass	White	Locking Ramp	0.13 in	3.3 mm	Male Pin	Header	All	Kinked Pin, Solder	1	Unshrouded	2.5 mm	0.098 in	Tin	0.255 "	6.48 mm	UL94 V-0	Nylon, Polyamide (PA)	Circular	2
TE Connectivity AMP Connectors 92008-3	Board to Cable/Wire	Through Hole	Brass	White	Locking Ramp	0.13 in	3.3 mm	Male Pin	Header	All	Kinked Pin, Solder	1	Unshrouded	2.5 mm	0.098 in	Tin	0.255 "	6.48 mm	UL94 V-0	Nylon, Polyamide (PA)	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 2 position 0.098" (2.50mm)
