Description
General part information

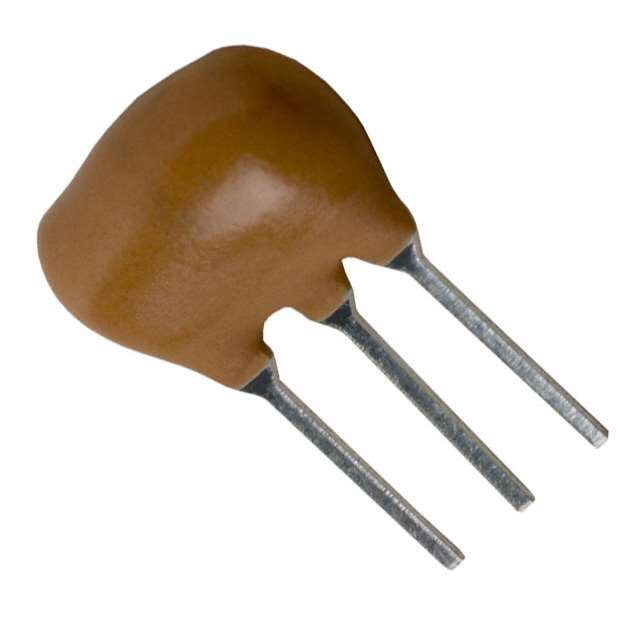

ZTT-4.19MG
4.19 MHz Ceramic Resonator Built in Capacitor 30 pF ±0.3% 30 Ohms -20°C ~ 80°C Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ZTT-4.19MG |
|---|---|
| Capacitance | 30 pF |
| Features | Built in Capacitor |
| Frequency | 4.19 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.5 % |
| Height | 0.295 in |
| Impedance | 30 Ohm |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 3 Leads |
| Package Name | Radial |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.197 in |
| Type | Ceramic |
