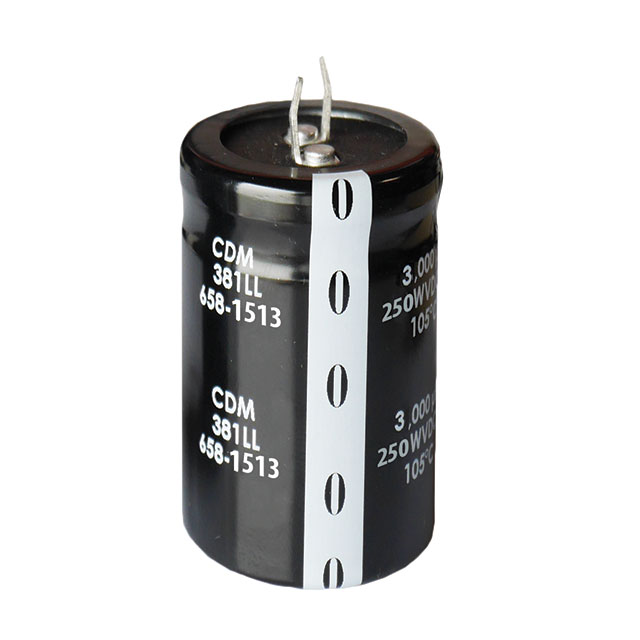

Specification	381LL332M100A052

Applications	General Purpose
Capacitance	3300 µF
ESR (Equivalent Series Resistance)	59 mOhm
Height - Seated (Max)	2.047 in
Lead Spacing	0.394 in
Lifetime	8000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	6.58 A, 4.7 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	100 VAC/DC
