Specification	IMC1210EB2R2K

Current Rating	320 mA
DC Resistance (DCR) (Max)	1 Ohm
Frequency - Self Resonant	75 MHz
Height - Seated (Max)	0.095 in
Inductance	2.2 µH
Inductance Frequency - Test	7.96 MHz
Material - Core	Iron Powder
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

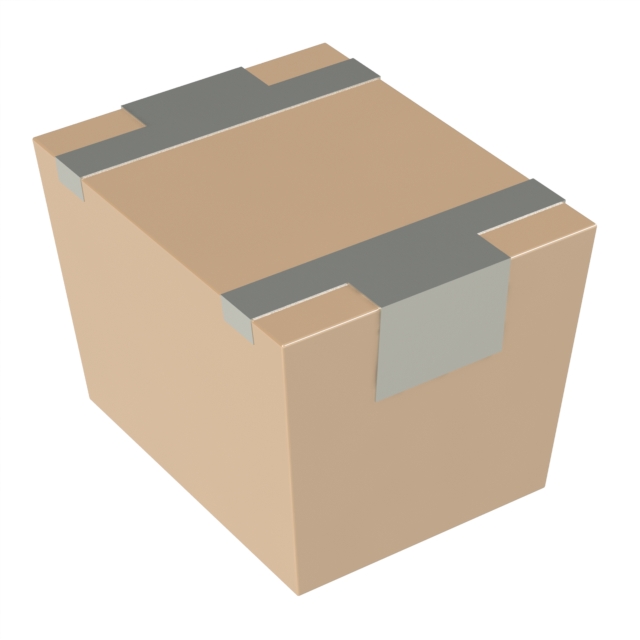

Package / Case	1210 (3225 Metric)
Package Name	1210
Q	30
Shielding	Unshielded
Size / Dimension Length	0.126 in
Size / Dimension Width	0.098 in
Tolerance	10 %
Type	Drum Core, Wirewound

IMC-1210 Series

Part	Shielding	Q	Inductance	DC Resistance (DCR) (Max)	Frequency - Self Resonant	Tolerance	Package Name	Material - Core	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Size / Dimension Length	Size / Dimension Width	Mounting Type	Height - Seated (Max)	Inductance Frequency - Test	Current Rating	Type
Vishay Dale IMC1210BN4R7M	Unshielded	30	4.7 µH	1.5 Ohm	50 MHz	20 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	7.96 MHz	224 mA	Drum Core Wirewound
Vishay Dale IMC1210SYR22J	Unshielded	30	220 nH	320 mOhm	350 MHz	5 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	484 mA	Drum Core Wirewound
Vishay Dale IMC1210SYR47J	Unshielded	30	470 nH	500 mOhm	220 MHz	5 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	0.45 A	Drum Core Wirewound
Vishay Dale IMC1210EBR18J	Unshielded	30	180 nH	280 mOhm	400 MHz	5 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	518 mA	Drum Core Wirewound
Vishay Dale IMC1210BNR47J	Unshielded	30	470 nH	500 mOhm	220 MHz	5 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	0.45 A	Drum Core Wirewound
Vishay Dale IMC1210EBR22M	Unshielded	30	220 nH	320 mOhm	350 MHz	20 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	484 mA	Drum Core Wirewound
Vishay Dale IMC1210EBR82J	Unshielded	30	820 nH	670 mOhm	140 MHz	5 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	0.45 A	Drum Core Wirewound
Vishay Dale IMC1210BNR18K	Unshielded	30	180 nH	280 mOhm	400 MHz	10 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	518 mA	Drum Core Wirewound
Vishay Dale IMC1210EBR56J	Unshielded	30	560 nH	550 mOhm	180 MHz	5 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	0.45 A	Drum Core Wirewound
Vishay Dale IMC1210ERR12J	Unshielded	30	120 nH	220 mOhm	500 MHz	5 %	1210	Iron Powder	125 °C	-55 °C	1210 (3225 Metric)	0.126 in	0.098 in	Surface Mount	0.095 in	25.2 MHz	584 mA	Drum Core Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

IMC1210EB2R2K | Datasheet
