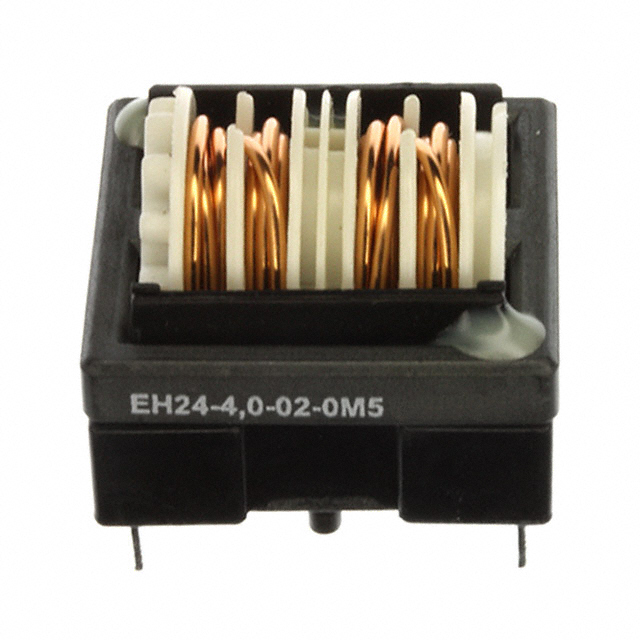

EH24-4.0-02-0M5
ActiveTE Connectivity Raychem Cable Protection
CMC 500UH 4A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EH24-4.0-02-0M5
ActiveTE Connectivity Raychem Cable Protection
CMC 500UH 4A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EH24-4.0-02-0M5 |
|---|---|
| Current Rating (Max) [Max] | 4 A |
| DC Resistance (DCR) (Max) | 16 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.827 in |
| Height (Max) | 21 mm |
| Inductance @ Frequency | 500 µH, 10 kHz |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [y] | 0.945 in |
| Size / Dimension [y] | 24 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.00 | |
| 10 | $ 2.33 | |||
| 25 | $ 2.11 | |||
| 40 | $ 2.00 | |||
| 80 | $ 1.85 | |||
| 230 | $ 1.65 | |||
| 440 | $ 1.61 | |||
Description
General part information
EH24-4 Series
500 µH @ 10 kHz 2 Line Common Mode Choke Through Hole 4A DCR 16mOhm (Typ)
